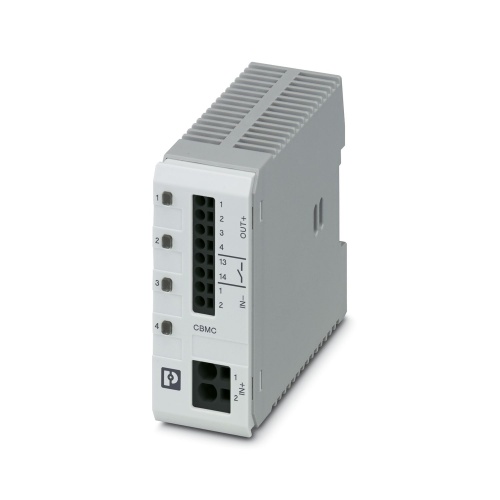

Phoenix Contact 1021728 Electronic circuit breaker CBMC E4 24DC/1-4A+ NO-C
Normally In Stock
Code: 70853
CBMC E4 24DC/1-4A+ NO-C Phoenix 1021728 Device circuit breakers max. 16 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
CALL FOR SHIP TIME *NON-CANCELLABLE, NON-RETURNABLE*
$179.58
Sale Price
$149.65
MUST BUY IN PACKS OF 6
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1021728 A multi-channel electronic circuit breaker designed to protect up to four loads at 24V DC can be preconfigured before installation, featuring electronic lockout of set nominal currents and is suitable for mounting on DIN rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
16 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features

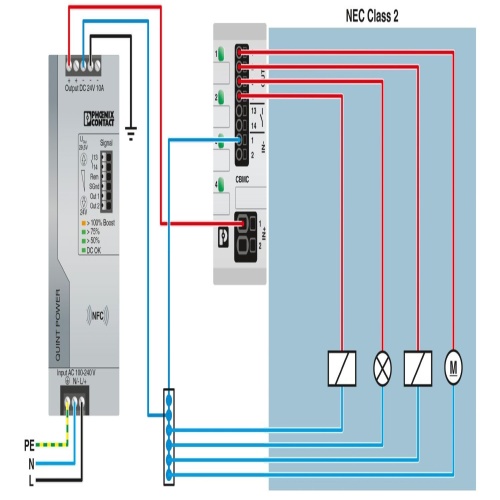

Optimum protection for cables and sensors as well as NEC Class 2 circuits by means of an additional internal output fuse
Circuits can be adjusted without any tools by means of one single pushable LED button
Pre-configuration available – for device protection that meets the specific requirements of your system

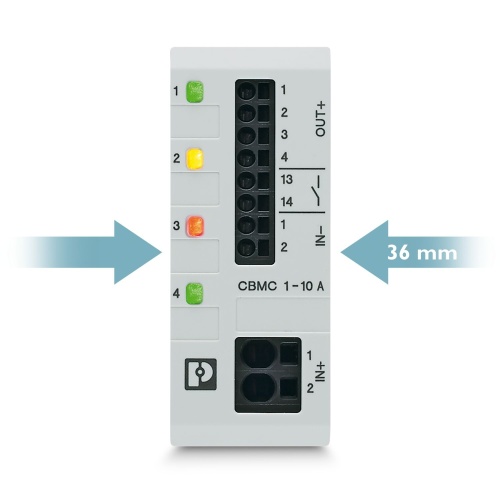

Easy device replacement without replanning, thanks to compact design and options for individual adjustments
Reliable protection against unintentional adjustment of current values, thanks to electronic locking

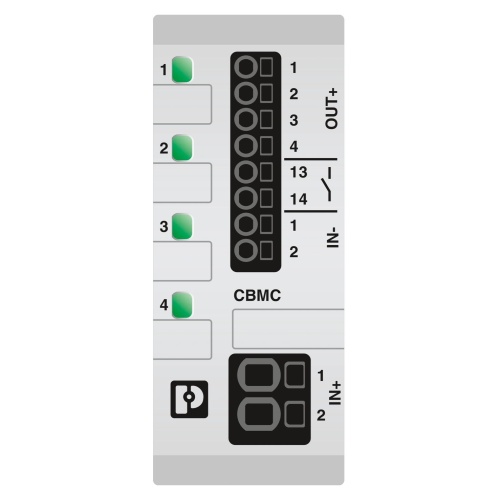

Status LEDs in traffic light colors enable instantaneous determination of operating states
Downloads
Phoenix 1021728 CAD data International.dxfPhoenix 1021728 CAD data International.pdfPhoenix 1021728 CAD data International.stpPhoenix 1021728 Flyer English-2.pdfPhoenix 1021728 Flyer English.pdfPhoenix 1021728 Manufacturers declaration English.pdfPhoenix 1021728 Manufacturers declaration International.pdfPhoenix 1021728 Package Slip International.pdfPhoenix 1021728 Product Information English.pdfPhoenix 1021728 Tender Text English.zipPhoenix 1021728 Various English.pdf
