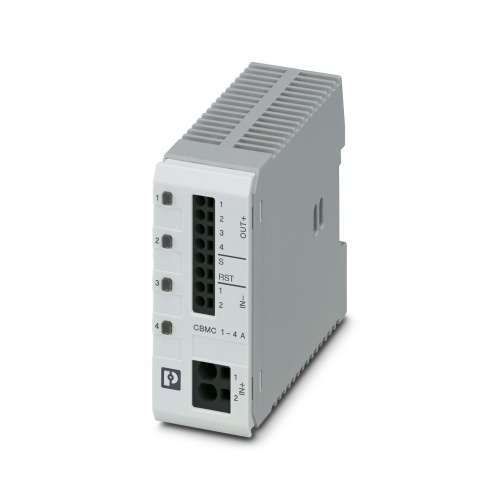

Phoenix Contact 1065727 Electronic circuit breaker CBMC E4 24DC/1-4A S-R
Normally In Stock
Code: 70845
CBMC E4 24DC/1-4A S-R Phoenix 1065727 Device circuit breakers max. 16 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships within 7-14 days. Call for ship time$135.36
Sale Price
$112.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

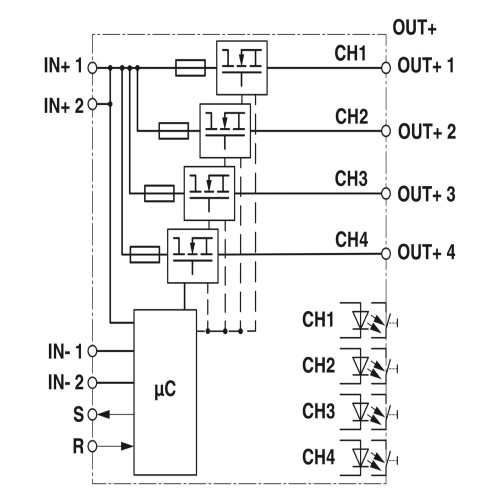

Phoenix Contact 1065727 A multi-channel electronic circuit breaker is designed to protect four separate loads connected to a 24V DC power source when an overload or short circuit occurs, providing an added layer of safety and security. It features a status output that indicates its current state, a reset input for easy manual intervention, and electronic locking of the set nominal currents to prevent accidental disconnections.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
16 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Breaker Function
Reset Input
Breaker Function
Status Output
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features
Optimum protection for cables and sensors as well as NEC Class 2 circuits by means of an additional internal output fuse
Circuits can be adjusted without any tools by means of one single pushable LED button
Enhanced diagnostic and control options, thanks to integrated status output and reset input
Easy device replacement without replanning, thanks to compact design and options for individual adjustments
Reliable protection against unintentional adjustment of current values, thanks to electronic locking

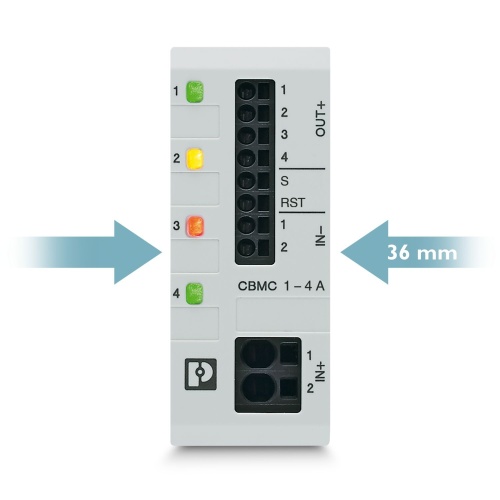

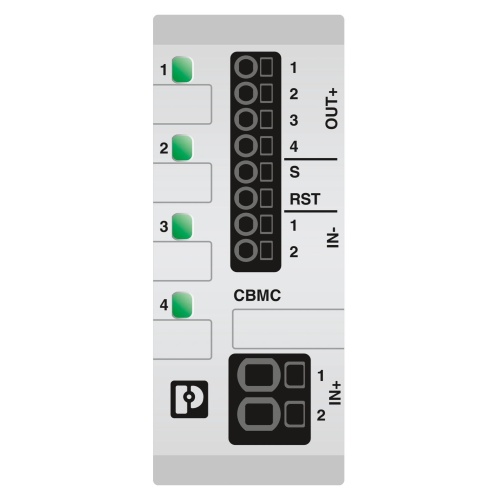

Status LEDs in traffic light colors enable instantaneous determination of operating states
Downloads
Phoenix 1065727 CAD data International.dxfPhoenix 1065727 CAD data International.pdfPhoenix 1065727 CAD data International.stpPhoenix 1065727 Flyer English-2.pdfPhoenix 1065727 Flyer English.pdfPhoenix 1065727 Manufacturers declaration English.pdfPhoenix 1065727 Manufacturers declaration International.pdfPhoenix 1065727 Package Slip International.pdfPhoenix 1065727 Tender Text English.zipPhoenix 1065727 Various English.pdf
