Code: 6380

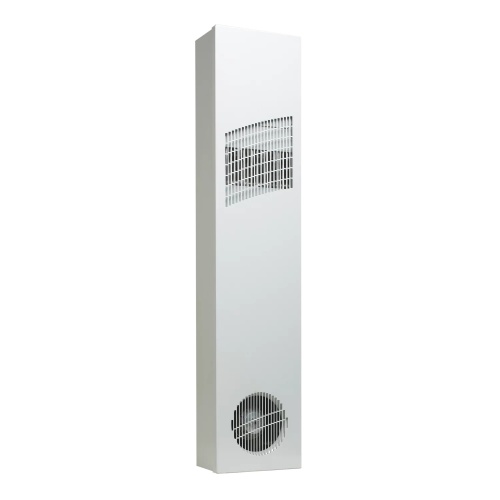

nVent Hoffman XR472426012 Climaguard XR Series Compact Heat Exchanger 230V
nVent Hoffman XR472426012 Heat Exchanger XR Series Compact and Mid Size. 230VAC 47.16" x 10.24" x 5.92" High effeciency, streamlined, and designed for use on narrow or shalow enclosures. Top-quality filterless design.
Condition: New
Usually ships Same Day or Next Day$5584.20
Sale Price
$4653.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman XR472426012 Heat Exchanger XR Series Compact and Mid Size. 230VAC 47.16"x10.24"x5.92" High effeciency, streamlined, and designed for use on narrow or shalow enclosures. Top-quality bal-bearing fans with filterless design.
Specifications
AC Width
11"
AC Voltage
230 VAC
AC Maximum Ambient Temp
140 F
AC Composition
Steel
AC Environment
Indoor
AC Minimum Ambient Temp
-20 F
Component
Heat Exchanger
Sub Component
Air To Air Heat Exchanger
Line
Climaguard XR
AC Depth
6"
AC Height
48"
AC Type
Heat Exchanger
AC NEMA Rating
NEMA Type 12
AC Amperage
0.9 Amp
Manufacturer
Hoffman
Features
Low-carbon mild-steel sheet-metal cover for rugged factory environments
Models for 115 and 230 VAC power input
Operating temperature range from -20 F/-29 C to 140 F/60 C
Filterless design for low maintenance and easy cleaning
Streamlined aesthetics with no visible mounting rails, slim design allows for mounting to narrow or shallow enclosures
Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
Four fasteners allow simple removal of front cover for easy access
Mounting hardware, gaskets and user manual furnished with the unit
Every unit functionally tested before shipping
Easy-mount flanges for simple installation
