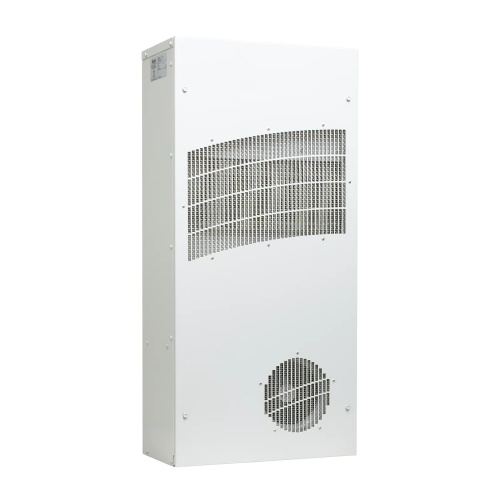

nVent Hoffman TX332816100 Climaguard TX Series Heat Exchanger 115V
nVent Hoffman TX332816100 Heat Exchanger 115VAC 33"x15.7"x8.1" Climaguard is a rugged and reliable unit engineered for temperature extremes, corrosive enviroments, and wind driven rain. It's design keeps enclosure sealed tight for reliable closed-loop cooling.
Condition: New
Usually ships Same Day or Next Day$4469.82
Sale Price
$3724.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman TX332816100 Heat Exchanger 115VAC 33"x15.7"x8.1" Climaguard is a rugged and reliable unit engineered for temperature extremes, corrosive enviroments, and wind driven rain. It's design keeps enclosure sealed tight for reliable closed-loop cooling.
Specifications
AC Voltage
115 VAC
AC Maximum Ambient Temp
149 F
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Heat Exchanger
Sub Component
Air To Air Heat Exchanger
Line
Climaguard TX
AC Depth
9"
AC Height
34"
AC Type
Heat Exchanger
AC Width
16"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 4
AC Amperage
1.4 Amp
Manufacturer
Hoffman
Features
Filterless design for low maintenance and easy cleaning
Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
Variable speed blowers standard on DC powered units for quiet running
Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
Engineered for temperature extremes, corrosive environments and wind driven rain
Unique counterflow aluminum core for high efficiency and high performance heat transfer
Easy-mount flanges for simple installation
Mounting hardware, gaskets and user manual furnished with the unit
Every unit functionally tested before shipping
Surface or recessed mount capable
Downloads
Hoffman TX332816100 CAD Drawing.zipHoffman TX332816100 CLIMAGUARD Air-To-Air Outdoor Instruction Manual.pdfHoffman TX332816100 Declaration of Compliance.pdfHoffman TX332816100 EU Certification.pdfHoffman TX332816100 Spec Sheet.pdfHoffman TX332816100 TX33 CAD Files.zipHoffman TX332816100 UL Certification.pdfHoffman TX332816100 User Manual.pdf
