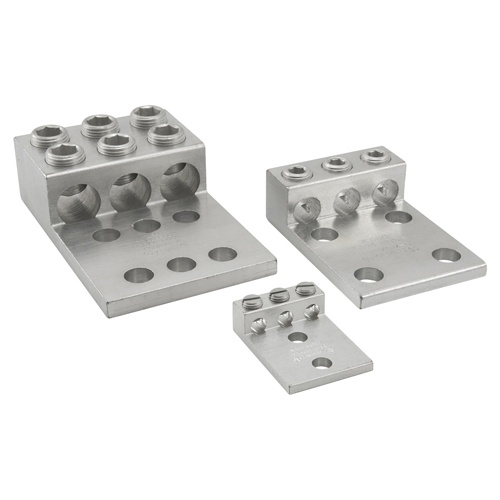

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco T3A2-600N Mechanical Lug - Aluminum, 600-2 AWG, Stranded, 35 kV
Normally In Stock
Code: 587642
Ilsco T3A2-600N - Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-600N
Condition: New
CALL FOR LEAD TIME$409.81
Sale Price
$315.24
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T3A2-600N - Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 6 Holes, 1/2in Bolt Size, Tin Plated, UL, CSA Listed. Suitable for 600 kcmil - 2 Str copper/aluminum stranded conductors, with a 35 kV voltage rating. Mounting hole spacing of 1-3/4in, internal hex drive type. Dimension G: 0.625in.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Terminal for Wire Gauge
600-2 AWG
Number of Connectors
3
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation t echniques must be used
Must be mounted with a minimum of 2 bolts
Rated to 90˚ C
