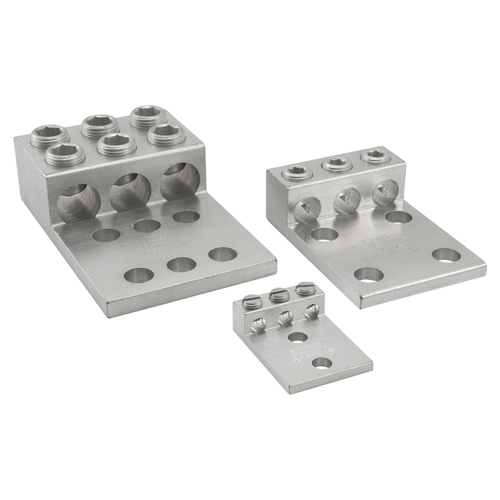

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco T3A2-0 Mechanical Lug - Aluminum, 1/0-14 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589534
Ilsco T3A2-0 - Aluminum Mechanical Lug, Conductor Range 1/0-14, 3 Ports, 2 Holes, 3/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$98.77
Sale Price
$75.98
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T3A2-0 - Aluminum Mechanical Lug with 3 ports and 2 holes, suitable for conductor range 1/0-14. Tin plated for durability. UL and CSA listed, NEMA Code S-588-3. Dual rated for copper and aluminum conductors. Temperature rating of 90°C, voltage rating of 35 kV. Mounting hole spacing of 1 inch.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
3
Component
Mechanical Lug
Terminal for Wire Gauge
1/0-14 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation t echniques must be used
Must be mounted with a minimum of 2 bolts
Rated to 90˚ C
