Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

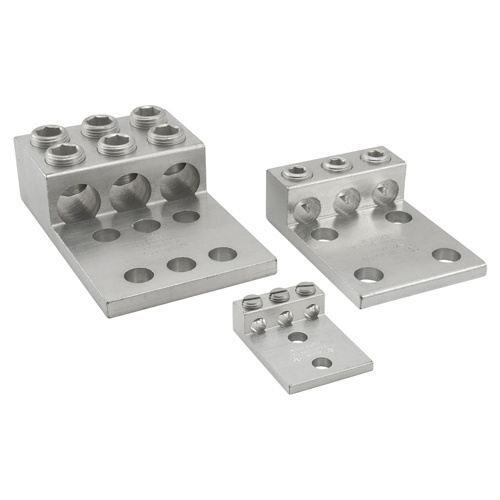

Ilsco T3A2-2 Mechanical Lug - Aluminum, 2-14 AWG, Stranded, 35 kV, 5/16", Silver
Normally In Stock
Code: 589535
Ilsco T3A2-2 - Aluminum Mechanical Lug, Conductor Range 2-14, 3 Ports, 2 Holes, 5/16in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$77.47
Sale Price
$59.59
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T3A2-2 - Aluminum Mechanical Lug with 3 ports, 2 holes, and a 5/16in bolt size. Designed for conductor ranges 2-14 AWG with tin-plated finish. UL and CSA approved, suitable for 35kV voltage. Suitable for stranded and solid copper/aluminum conductors. Mounting holes spaced at 0.344in and 8.7376mm. Tin-finished wire binding screws included.
Specifications
Color
Silver
Terminal Stud Size Opening
5/16"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
3
Component
Mechanical Lug
Terminal for Wire Gauge
2-14 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation t echniques must be used
Must be mounted with a minimum of 2 bolts
Rated to 90˚ C
