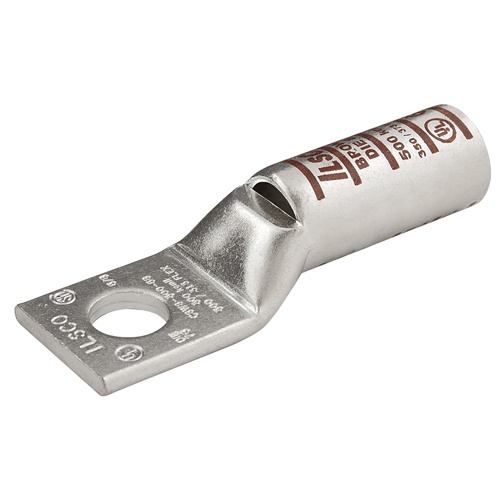

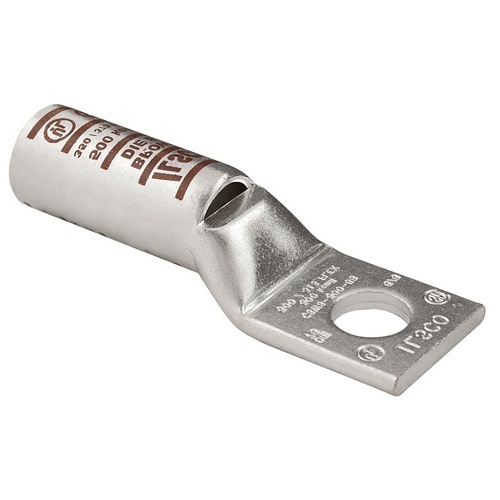

Ilsco CLWS-650-38 Compression Lug - Copper, 650 MCM, Flex, 35 kV, 3/8", Silver
Normally In Stock
Code: 587422
Ilsco CLWS-650-38 - Surecrimp Copper Compression Lug, Conductor Size 650, 1 Hole, 3/8in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$68.59
Sale Price
$52.76
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLWS-650-38 - Surecrimp Copper Compression Lug, 650 kcmil Conductor Size, 1 Hole, 3/8in Bolt Size, Long Barrel with Sight Window. Tin Plated copper material, UL/CSA/NEMA approved. Temperature rating of 90°C, voltage rating of 35 kV. Compression connection, suitable for Flex conductor type. Barrel length 2.687in, for 650-350 kcmil conductors.
Specifications
Bolt Size
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Number of Mounting Holes
2
Conductor Type
Flex
Wire Gauge
650 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
