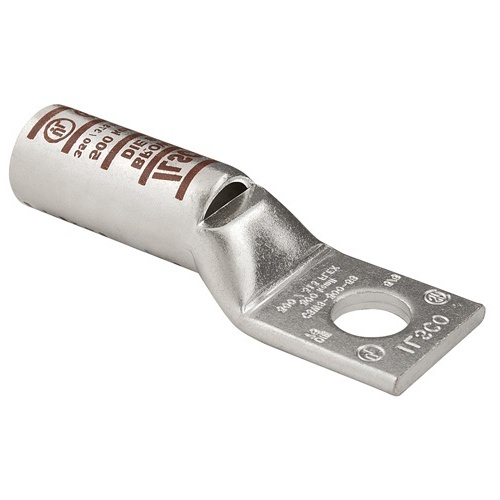

Ilsco CLWS-650-58 Compression Lug - Copper, 650 MCM, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Code: 586204
Ilsco CLWS-650-58 - Surecrimp Copper Compression Lug, Conductor Size 650, 1 Hole, 5/8in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$70.39
Sale Price
$54.15
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CLWS-650-58 - Surecrimp S-588-3 Copper Compression Lug for 650 kcmil conductors, 1 hole, 5/8in bolt size. Long barrel with sight window, tin-plated copper, UL Listed. Voltage rating of 35 kV, temperature rating of 90°C. Mounting hole spacing 0mm, tang thickness 6.5786mm, barrel length 68.2498mm. Ideal for compression connections in electrical applications.
Specifications
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Conductor Type
Flex
Number of Mounting Holes
1
Bolt Size
5/8"
Wire Gauge
650 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
