Code: 569251

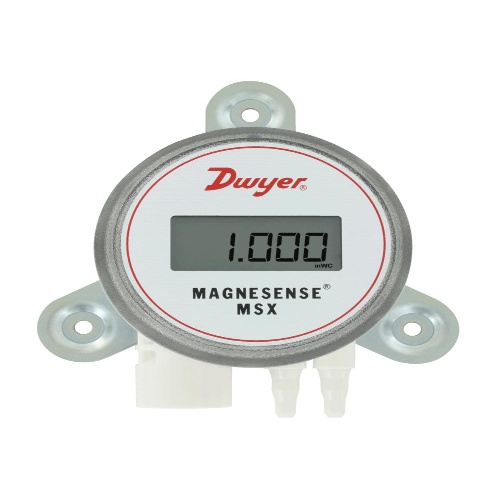

Dwyer MSX-W21-IN Pro Magnesense® Differential Pressure Transmitter
Normally In Stock
Dwyer MSX-W21-IN - Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 1 (0.1, 0.25, 0.5, 1" wc).
Condition: New
Usually ships Same Day or Next Day$144.37
Sale Price
$120.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MSX-W21-IN Pro Magnesense® Differential Pressure Transmitter has a temperature range of -4 to 158°F (-20 to 70°C) and an accuracy of ±.5% FSO. It requires 10-36 VDC power and has an instantaneous response time. The enclosure rating is NEMA 4X and it has a 4-20 mA output signal. The transmitter can be used with air and non-combustible gases and has a 4 digit LCD display.
Specifications
Component
Differential Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Temperature Range
-4 - 158°F/-20 - 70°C
(Instrument-Sensor) Supply Voltage
17-36 VDC
(Instrument-Sensor) Supply Voltage
21.6-33 VAC
(Instrument-Sensor) Supply Voltage
10-36 VDC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Measurement Accuracy
0.50%
Manufacturer
Dwyer Instruments
(Instrument-Sensor) Type
Pro Magnesense Differential
Features
Read LCD values easier with rotatable 180 ° display
Quick and easy wiring via the optional toolless terminal block
Add safety to variety of applications with UL94 V-0 and plenum ratings
