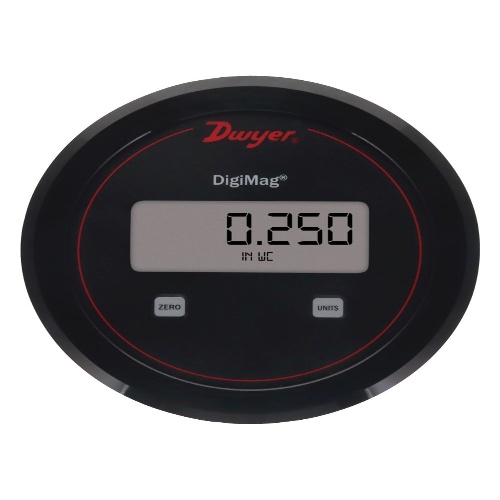

Dwyer DM-004 Digimag® Differential Pressure Transmitter
Normally In Stock
Code: 568858
Dwyer DM-004 - Differential digital pressure transmitter, range 0-1.0" w.c.
Condition: New
Usually ships Same Day or Next Day$189.96
Sale Price
$158.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DM-004 Digimag® Differential Pressure Transmitter is a versatile and reliable product suitable for air and non-combustible gases. It has an accuracy of ±1% FSO (except for low ranges), a power requirement of 10-35 VDC, and utilizes screw-type terminals for electrical connections. The transmitter features a 4-20 mA output signal, push-button zero and span adjustments, and a NEMA 4X (IP66) enclosure rating. Its compact dimensions of 5" OD x 1.9" deep make it easy to install, and it is not sensitive to mounting orientation. The product is constructed from durable, polycarbonate material and can withstand pressure up to 6 psi. With a thermal effect of 0.036% FS/°C, stability of < ±1%/year FSO, and a maximum current consumption of 21 mA, the DM-004 is a reliable and efficient choice for differential pressure measurement.
Specifications
Component
Differential Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Temperature Range
-4 - 158°F/-20 - 70°C
(Instrument-Sensor) Supply Voltage
10-35 VDC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Type
Digimag® Differential
Manufacturer
Dwyer Instruments
Features
Reduced installation time through zero and span controls that provides quick and easy calibration
Fast and easy setup and calibration with push-button zero and span controls
Immediate corrective action can be taken by local alerts via the easy-to-read LCD display
Reduces upgrade installation costs and simplifies field upgrade from a Magnehelic® gage, as both use the same diameter cutout
