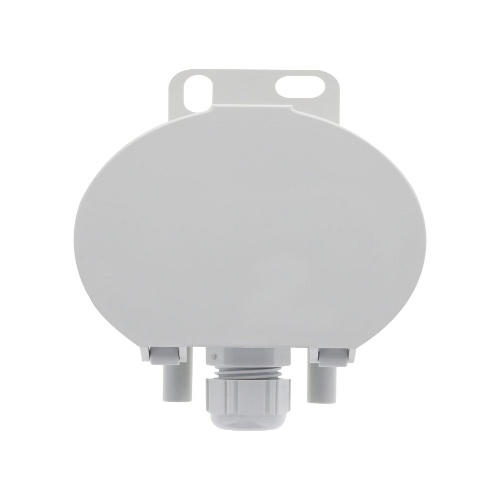

Dwyer 685-09-V Differential Pressure Transmitter
Normally In Stock
Code: 568306
Dwyer 685-09-V - Differential pressure transmitter, 250 Pa, 0-10 V output
Condition: New
Usually ships Same Day or Next Day$144.59
Sale Price
$120.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 685-09-V is a differential pressure transmitter with a temperature range of -4 to 158°F (-20 to 70°C). It has an accuracy of ≤ ±0.5% RSS (BFSL), ± 1Pa and a response time of 1 s (default) or 200 ms (user selectable). With an IP54 enclosure rating, it is suitable for use in various environments. The transmitter features a piezoresistive pressure sensor and can handle up to 95% RH humidity. It has electrical connections using a spring connector and offers both 2-wire (4-20 mA) and 3-wire (0-10 V) output signals. The voltage requirements are 2-wire: 18-30 VDC and 3-wire: 18-30 VAC/DC. It can be mounted using screw fastening and is suitable for air and non-corrosive gases. The transmitter is made of ABS material and has a loop resistance of 2-wire: 500 Ω max and 3-wire: ≥ 1 kΩ (≤ 10 mA). It has a 6 mm hose connection and dimensions of Ø 66 x 28 mm. The stability is ≤ ±1% RSS per year and it comes with a cable conduit with a cap nut conduit made of polyamide, measuring 15 mm (across flats). The maximum current draw is 2-wire: 21 mA and 3-wire: 40 mA.
Specifications
Component
Differential Pressure Transmitter
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) Temperature Range
-4 - 158°F/-20 - 70°C
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) Application
Air And Non-Corrosive Gases
Manufacturer
Dwyer Instruments
Features
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Single button to zero saves maintenance time
Factory restore to defaults with a long button press
User-adjustable response time provides versatility for many applications
