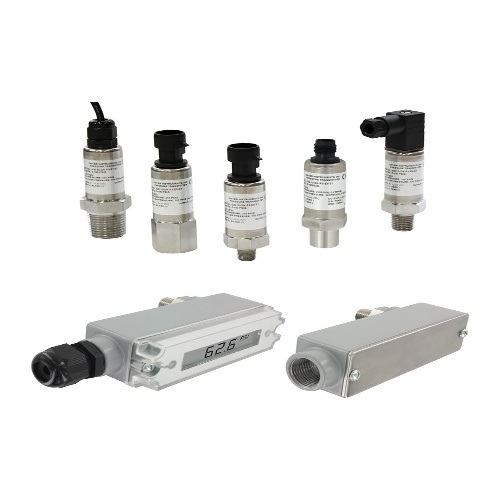

Dwyer 626-13-GH-P1-E1-S7 Industrial Pressure Transmitter
Normally In Stock
Code: 568171
Dwyer 626-13-GH-P1-E1-S7 - 626-13-GH-P1-E1-S7 0-300 PSIG
Condition: New
Usually ships Same Day or Next Day$237.46
Sale Price
$197.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 626-13-GH-P1-E1-S7 Industrial Pressure Transmitter is suitable for use with compatible gases and liquids. It has an operating temperature range of 0 to 200°F (-18 to 93°C) and offers high accuracy with various output options such as 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, or 0.5-4.5 VDC. The transmitter has a response time of 300 ms and features a NEMA 4X (IP66) enclosure rating, allowing for mounting in any position. It is made of Type 316L SS material and has a pressure limit specified on the catalog page. The Dwyer 626-13-GH-P1-E1-S7 also has a thermal effect of ±0.02% FS/°F and a loop resistance of 0-1000 Ω max. The current consumption ranges from 10 mA to 140 mA depending on the output.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Supply Voltage
5 VDC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Supply Voltage
10-35 VDC
Component
Industrial Pressure Transmitter
(Instrument-Sensor) Measurement Accuracy
0.20%
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Measurement Accuracy
0.30%
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Supply Voltage
13-35 VDC
(Instrument-Sensor) Supply Voltage
16-33 VAC
(Instrument-Sensor) Measurement Accuracy
0.50%
Manufacturer
Dwyer Instruments
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Robust 316L SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
A wide range of models and connections that can meet pressure measurement specifications from low to very high
