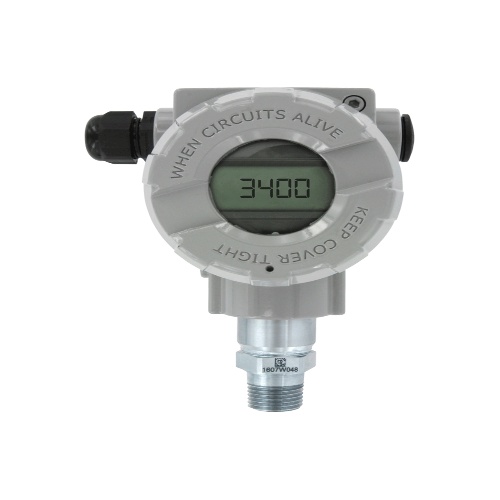

Dwyer 3400-AL-13-NM-2 Smart Pressure Transmitter
Normally In Stock
Code: 567966
Dwyer 3400-AL-13-NM-2 - Smart pressure transmitter, range 0-100 psi
Condition: New
Usually ships Same Day or Next Day$1731.00
Sale Price
$1442.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3400-AL-13-NM-2 is a Smart Pressure Transmitter with an ambient temperature range of -40 to 185°F (-40 to 85°C) and a process temperature range of -40 to 400°F (-40 to 204°C) with -DS. It has an accuracy of ±0.075% FS (@ 20°C) and requires a power input of 10 to 55 VDC. It has a response time of 16 to 480 ms (programmable) and an enclosure rating of NEMA 4X IP66/IP67. The electrical connections include a packing gland M20x1.5 and two 1/2" female NPT conduit screw terminals. It has an output signal of 4 to 20 mA and is compatible with gases, steam, liquids, or vapors. The wetted material is 316L SS and it has a 1/2" female or male NPT process connection. It is suitable for hazardous locations and has a thermal effect of < ±0.05% span/10°C. It has a stability of ≤0.075% FSO/3 years and a damping time of 0 to 60 seconds. It has a rangeability of up to 100:1 turn down and a MTBF of 126 years. The MTFF is the MTBF minus 8 hours.
Specifications
Component
Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Steam
(Instrument-Sensor) Supply Voltage
10-55 VDC
(Instrument-Sensor) Measurement Accuracy
0.08%
(Instrument-Sensor) Application
Vapor
(Instrument-Sensor) Temperature Range
Ambient: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Type
Smart
(Instrument-Sensor) Temperature Range
Process: -40 - 400°F/-40 - 204°C
Manufacturer
Dwyer Instruments
Features
High accuracy (±0.075% FS)
Rangeability (up to 100:1)
Configurable using zero/span buttons (no calibrator required)
Fail-mode process function
Automatic ambient temperature compensation
