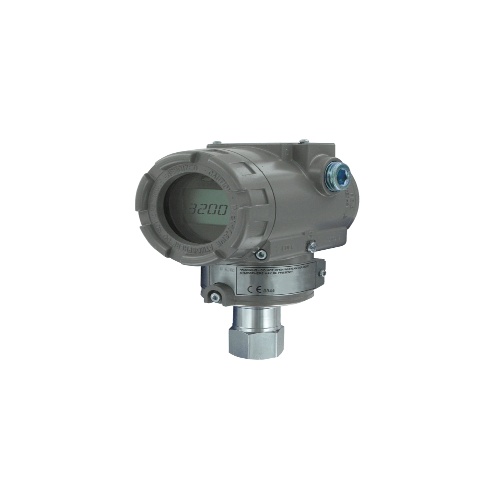

Dwyer 3200G-4-FM-1-1-LCD Explosion-Proof Pressure Transmitter
Normally In Stock
Code: 567963
Dwyer 3200G-4-FM-1-1-LCD - Smart pressure transmitter, range 0 to 3600 psi with LCD display.
Condition: New
Usually ships Same Day or Next Day$2207.15
Sale Price
$1839.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3200G-4-FM-1-1-LCD is an explosion-proof pressure transmitter designed for hazardous locations. It has a temperature range of -40 to 248°F and an accuracy of ±0.075% FS. With a 4 to 20 mA/HART output signal and optional LCD display, it offers precise measurement and communication. The transmitter is constructed with 316L SS wetted material and has a NEMA 4X/IP66 enclosure rating. It requires a power supply of 11.9 to 45 VDC and has a fast response time of 0.12 seconds. The Dwyer 3200G-4-FM-1-1-LCD is suitable for use with compatible gases, steam, liquids, and vapors.
Specifications
Component
Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Steam
(Instrument-Sensor) Measurement Accuracy
0.08%
(Instrument-Sensor) Hazardous Location Class
Class I - Div I Groups A-D
(Instrument-Sensor) Application
Vapor
(Instrument-Sensor) Temperature Range
Process: -40 - 248°F/-40 - 120°C
(Instrument-Sensor) Supply Voltage
11.9-45 VDC
(Instrument-Sensor) Type
Explosion-Proof
(Instrument-Sensor) Temperature Range
Ambient: - 185°F/-40 - 85°C
Manufacturer
Dwyer Instruments
Features
Completely configurable using zero/span buttons (no calibrator required)
Rangeability (100:1)
High accuracy (±0.075%)
Automatic sensor temperature compensation
Fail-mode process function
