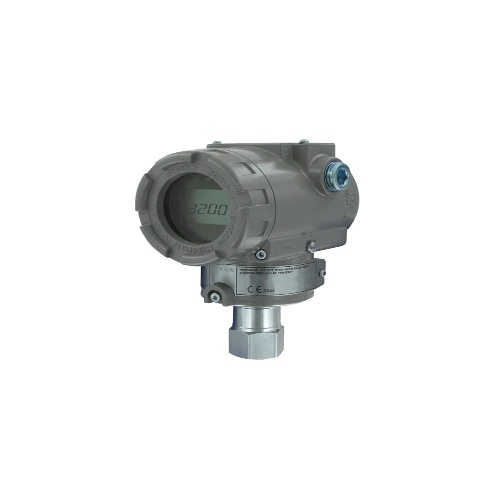

Dwyer 3200G-3-FM-1-1-LCD Explosion-Proof Pressure Transmitter
Normally In Stock
Code: 567961
Dwyer 3200G-3-FM-1-1-LCD - Smart pressure transmitter, range 0 to 725 psi with LCD display.
Condition: New
Usually ships Same Day or Next Day$2207.15
Sale Price
$1839.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3200G-3-FM-1-1-LCD is an explosion-proof pressure transmitter with a temperature range of -40 to 248°F. It has an accuracy of ±0.075% FS and a response time of 0.12 seconds. It is suitable for use with compatible gases, steam, liquids, or vapors. The transmitter features a 5-digit LCD display, a 4-20 mA output signal, and HART communication. It has a NEMA 4X (IP66) enclosure rating and is suitable for use in hazardous locations. The transmitter has a 316L SS wetted material and a 1/2" female NPT process connection.
Specifications
Component
Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Steam
(Instrument-Sensor) Measurement Accuracy
0.08%
(Instrument-Sensor) Hazardous Location Class
Class I - Div I Groups A-D
(Instrument-Sensor) Application
Vapor
(Instrument-Sensor) Temperature Range
Process: -40 - 248°F/-40 - 120°C
(Instrument-Sensor) Supply Voltage
11.9-45 VDC
(Instrument-Sensor) Type
Explosion-Proof
(Instrument-Sensor) Temperature Range
Ambient: - 185°F/-40 - 85°C
Manufacturer
Dwyer Instruments
Features
Completely configurable using zero/span buttons (no calibrator required)
Rangeability (100:1)
High accuracy (±0.075%)
Automatic sensor temperature compensation
Fail-mode process function
