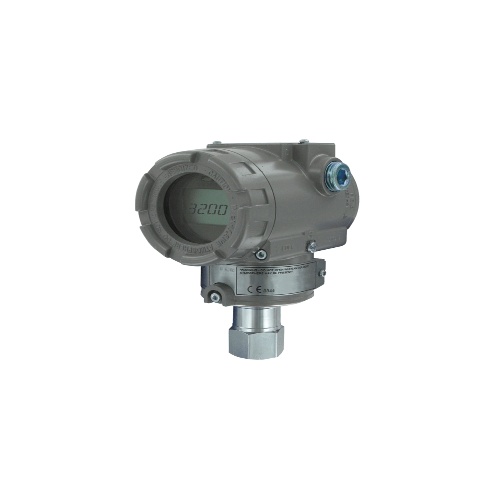

Dwyer 3200G-3-FM-1-1 Explosion-Proof Pressure Transmitter
Normally In Stock
Code: 567960
Dwyer 3200G-3-FM-1-1 - Smart pressure transmitter, range 0 to 725 psi.
Condition: New
Usually ships Same Day or Next Day$2012.17
Sale Price
$1676.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3200G-3-FM-1-1 is an explosion-proof pressure transmitter suitable for hazardous locations. It has a temperature range of -40 to 248°F and an accuracy of ±0.075% FS. It requires 11.9 to 45 VDC power and has a response time of 0.12 seconds. The transmitter is NEMA 4X (IP66) rated and has two 1/2" female NPT conduit electrical connections. Its output signal is 4-20 mA with HART® Communication. It is compatible with gases, steam, liquids, or vapors.
Specifications
Component
Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Steam
(Instrument-Sensor) Measurement Accuracy
0.08%
(Instrument-Sensor) Hazardous Location Class
Class I - Div I Groups A-D
(Instrument-Sensor) Application
Vapor
(Instrument-Sensor) Temperature Range
Process: -40 - 248°F/-40 - 120°C
(Instrument-Sensor) Supply Voltage
11.9-45 VDC
(Instrument-Sensor) Type
Explosion-Proof
(Instrument-Sensor) Temperature Range
Ambient: - 185°F/-40 - 85°C
Manufacturer
Dwyer Instruments
Features
Completely configurable using zero/span buttons (no calibrator required)
Rangeability (100:1)
High accuracy (±0.075%)
Automatic sensor temperature compensation
Fail-mode process function
