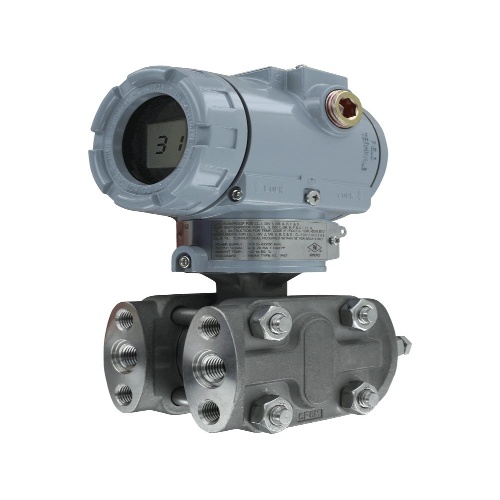

Dwyer 3100D-5-FM-1-1 Explosion-Proof Differential Pressure Transmitter
Normally In Stock
Code: 567939
Dwyer 3100D-5-FM-1-1 - Smart differential pressure transmitter, range 0-100 psi.
Condition: New
Usually ships Same Day or Next Day$2248.24
Sale Price
$1873.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3100D-5-FM-1-1 is an explosion-proof differential pressure transmitter with a temperature range of -40 to 248°F. It has an accuracy of ±0.075% FS and operates on 11.9 to 45 VDC power. The transmitter has a fast response time of 0.12 seconds and comes with a NEMA 4X enclosure. It has a 4 to 20 mA/HART® communication output and is suitable for use with gases, steam, liquids, and vapors. The optional 5 digit LCD display provides easy monitoring. The wetted material is 316L SS and fluoroelastomer, and the transmitter has a maximum pressure limit of -14.5 to 2000 psi. It has a 1/4" female NPT process connection and is suitable for hazardous locations. The thermal effect is ±0.125% span/32°C and the stability is ±0.125% FSO/yr. The transmitter has a rangeability of 100:1 turn down and a damping time of 0.25-60 seconds.
Specifications
Component
Differential Pressure Transmitter
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Steam
(Instrument-Sensor) Type
Explosion-Proof Differential
(Instrument-Sensor) Measurement Accuracy
0.08%
(Instrument-Sensor) Hazardous Location Class
Class I - Div I Groups A-D
(Instrument-Sensor) Application
Vapor
(Instrument-Sensor) Temperature Range
Process: -40 - 248°F/-40 - 120°C
(Instrument-Sensor) Temperature Range
Ambient: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Supply Voltage
11.9-45 VDC
Manufacturer
Dwyer Instruments
Features
Configurable using zero/span buttons means no calibrator required reducing time to install and running
Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
High accuracy (±0.075%) provides exceptional measurement for ensuring tightcontrol and minimizing costly out of specification conditions
Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication
