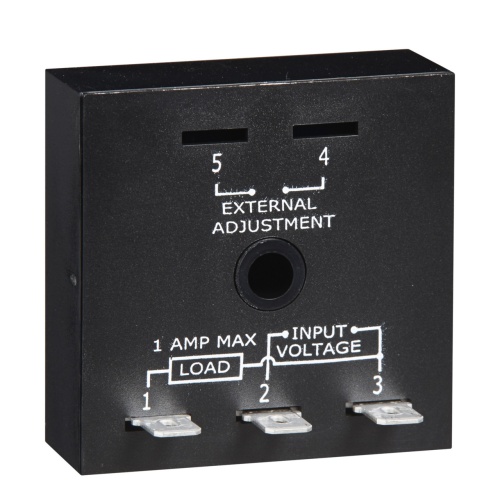

Littelfuse TS6321P is an encapsulated analog time delay relay with a maximum output load rating of 1 A steady state and 10 A inrush at 60°C. It features 0.25 in. male quick connect terminals, ±15% input tolerance, and a repeat accuracy of ±2% or 20 ms. The relay operates at a power consumption of ≤1 W and has a reset time of ≤150 ms. With a dielectric breakdown of ≥2000V, it provides reliable insulation resistance of ≥100 and a setpoint vs ambient temperature and operating voltage deviation of ≤±10%. The device offers positive switching in DC operations and has a time delay tolerance of ≤±10%. Its output voltage drop is approximately 1 V at 1 A.
