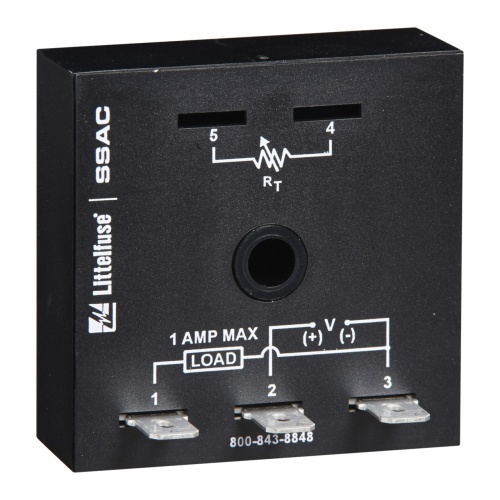

Littelfuse TS6123P is an encapsulated time-delay relay with an input tolerance of ±15% and repeat accuracy of ±2% or 20 ms (whichever is greater). It has a power consumption of ≤1 W and a reset time of ≤150 ms. With an output load rating of 1A steady state and 10A inrush @ 60°C, it provides reliable performance. The relay features 0.25 in. (6.35 mm) male quick connect terminals for easy termination and has a dielectric breakdown of ≥2000V terminals to mounting surface. With a compact size and low voltage drop of ≅1V @ 1A, it is highly efficient. Suitable for positive switching DC applications, it operates with ≤10% input DC ripple.
