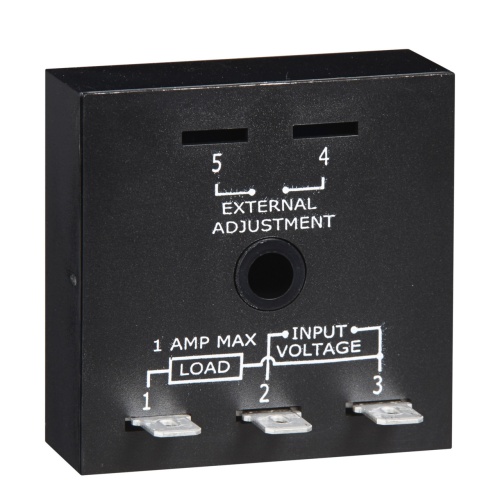

Littelfuse TS6116P is a compact and reliable time delay relay. It has a steady state output load rating of 1 A and can handle up to 10 A inrush current at 60°C. The termination type is 0.25 in. male quick connect terminals. With a humidity tolerance of 95% non-condensing, it ensures optimal performance in a variety of environments. The repeat accuracy is ±2% or 20 ms, whichever is greater, providing reliable and precise timing control. The insulation resistance is ≥100, and the setpoint vs ambient temperature and operating voltage is ≤±10%. It features encapsulated circuitry and has a power consumption of ≤1 W. The time delay tolerance is ≤±10% and the reset time is ≤150 ms. The dielectric breakdown is ≥2000V between terminals and the mounting surface. With a low output voltage drop of ≅1V @ 1A, it ensures efficient power distribution. This analog time delay relay operates with a positive switching DC operation and has a ≤10% input DC ripple.
