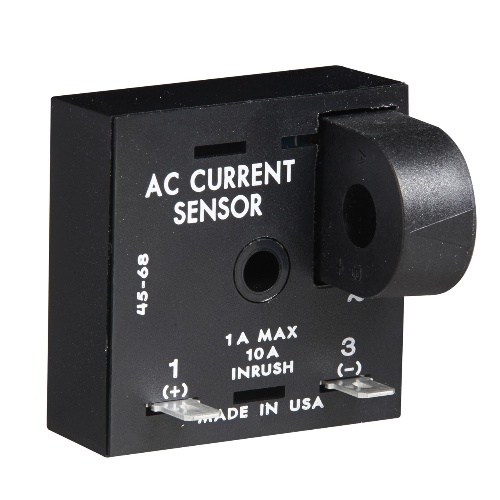

Littelfuse TCSG2A Current Monitoring - , Normally Open
Normally In Stock
Code: 566113
Littelfuse TCSG2A - TCS Series - Surface mount with one #10 (M5 x 0.8) screw - Steady state: 1 A; Inrush: 10 A
Condition: New
Usually ships Same Day or Next Day$127.19
Sale Price
$105.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TCSG2A is a current sensor with a 2 A fixed range and a maximum of 50 A. It features quick connect terminals and a sensor hole size of 0.36 in. The sensor operates on a voltage range of 3-50 Volts DC with an output voltage drop of approximately 1.2 V. With a response time of ≤200 ms for overcurrent and ≤1 s for undercurrent, it offers reliable performance.
Specifications
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Relay Throws
Normally Open
Features
No control voltage is required to operate the unit
No moving parts to arc and wear out over time and encapsulated to protect against shock, vibration, and humidity
Solid state output to sink or source current can be connected directly to a standard PLC digital input module
Provides 100 million operations in typical conditions
Allows you to monitor a load in a separate electrical system
