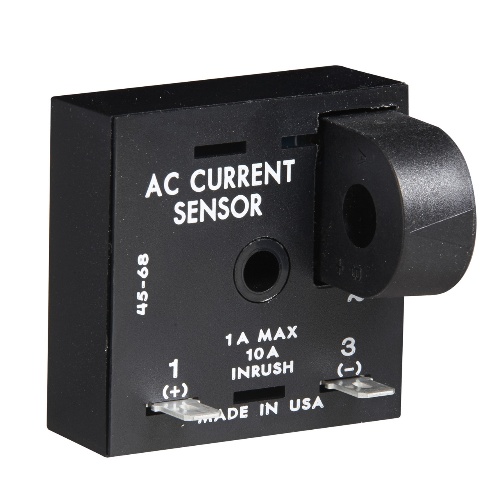

Littelfuse TCSH2B Current Monitoring - , Normally Closed
Normally In Stock
Code: 566117
Littelfuse TCSH2B - TCS Series - Surface mount with one #10 (M5 x 0.8) screw - Steady state: 1 A; Inrush: 10 A
Condition: New
Usually ships Same Day or Next Day$127.19
Sale Price
$105.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TCSH2B is a current sensor with a 2A fixed range and 50A maximum rating. It has quick connect terminals for easy installation and a sensor hole size of 0.36 inches. The sensor operates with a response time of ≤200ms for overcurrent and ≤1s for undercurrent. It has an output voltage range of 24-240 Volts and a voltage drop of approximately 2.5V. With a compact design and high insulation resistance, it is reliable and suitable for various applications.
Specifications
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Relay Throws
Normally Closed
Features
No control voltage is required to operate the unit
No moving parts to arc and wear out over time and encapsulated to protect against shock, vibration, and humidity
Solid state output to sink or source current can be connected directly to a standard PLC digital input module
Provides 100 million operations in typical conditions
Allows you to monitor a load in a separate electrical system
