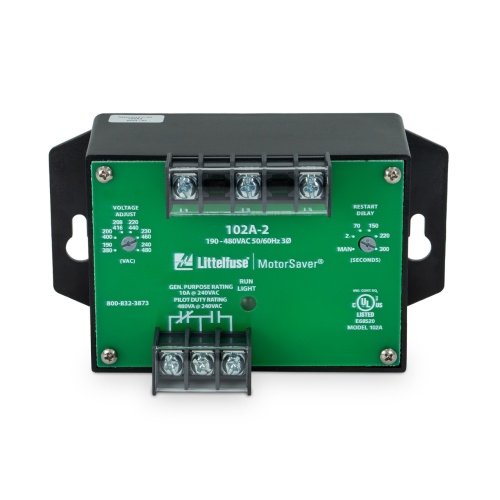

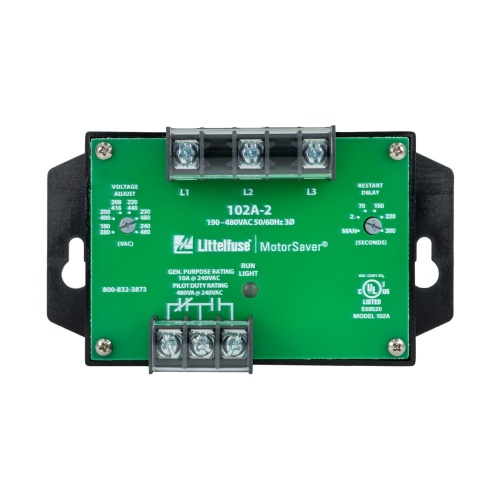

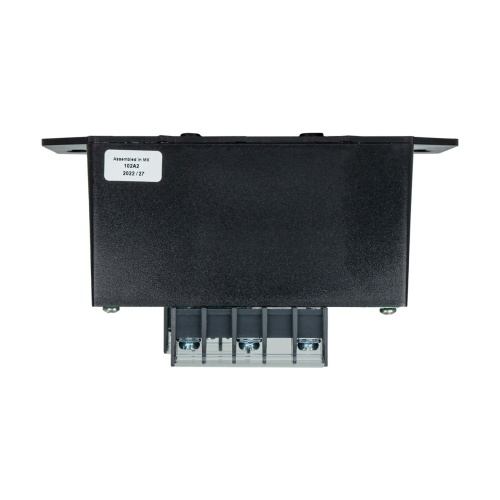

Littelfuse 102A2 is a versatile product designed for various applications. It has a pilot duty output load rating of 480 VA at 240 Volts and a general purpose rating of 10 A at 240 Volts. Its termination type is torque, with a wire size range of 12-18 AWG. This product operates at an input AC line frequency of 50/60 Hz, with the 50 Hz option increasing all delay timers by 20%. It offers an undervoltage trip voltage of 90% and a trip delay range of 4s for low/high voltage faults and 2s for unbalance/phase faults. The maximum input power is 5 VA. The restart delay range is adjustable, with a manual option and a range of 2-300s. The undervoltage reset voltage is 93%, while the voltage unbalance trip point is set at 6% and the reset at 4.50%. The trip point accuracy is ±1%.
