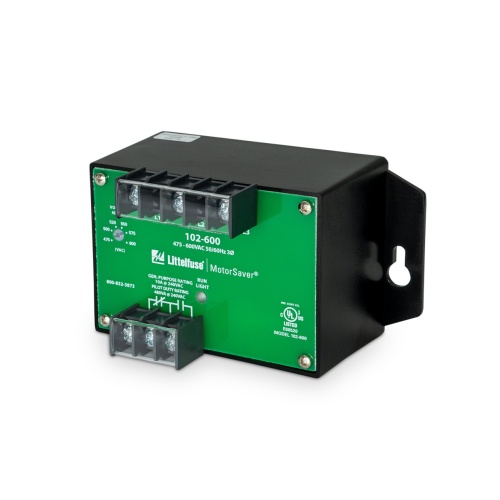

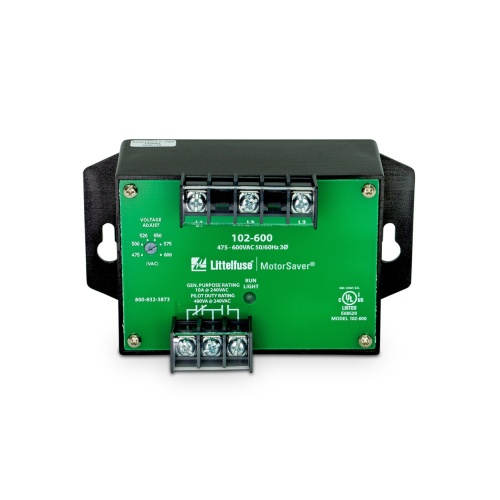

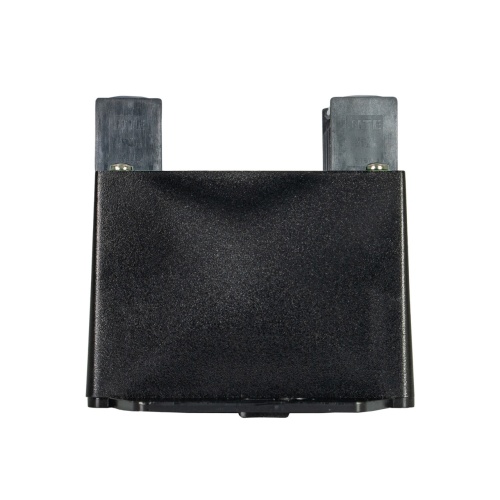

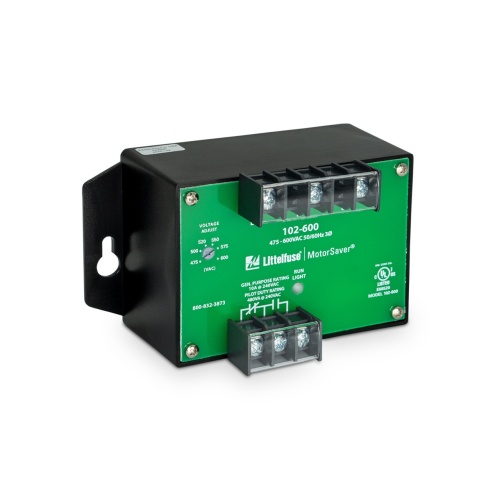

Littelfuse 102600 is a versatile product with a pilot duty load rating of 480 VA @ 240 Volts and a general purpose load rating of 10 A @ 240 Volts. It features torque termination with a 7 in-lbs torque requirement and accepts wire sizes between 12 - 18AWG solid or stranded. Designed for reliability, it operates on a wide AC line frequency range of 50/60 Hz. With a humidity tolerance of 10 - 95% non-condensing, it meets IEC 68-2-3 standards. Its undervoltage trip voltage is set at 90% and it offers various trip delay ranges for different fault conditions. The maximum input power is 5 watts. The restart delay for both fault and complete power loss is 2 seconds. The undervoltage reset voltage is 93% and the voltage unbalance trip point is set at 6% with a reset level of 4.50%. Trip point accuracy is ±1%.
