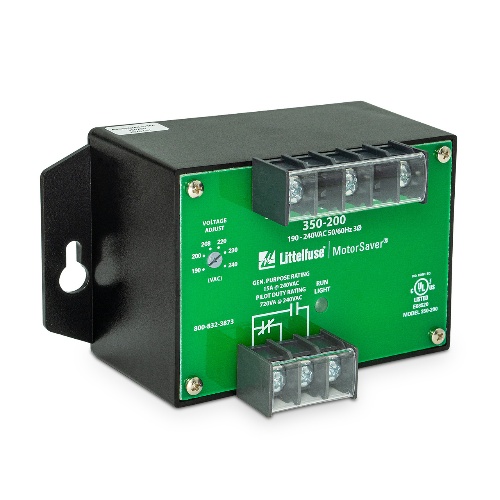

Littelfuse 350200 is a versatile device suitable for both pilot duty and general purpose applications. With a maximum output load rating of 480 VA at 240 Volts, it can handle various electrical demands. The termination type is torque, ensuring secure connections (7 in-lbs with wire size ranging from 12-18 AWG). The input AC line frequency is 50/60 Hz, with the ability to increase delay timers by 20% at 50 Hz. It has undervoltage trip voltage of 90%, offering protection against power dips. The trip delay ranges from 2 seconds for unbalance/phase faults and 4 seconds for under voltage. It has a maximum input power of 5 A. The restart delay is 2 seconds after a fault or complete power loss. It provides undervoltage reset at 93% and voltage unbalance reset at 4.50%. The trip point accuracy is ±1%.
