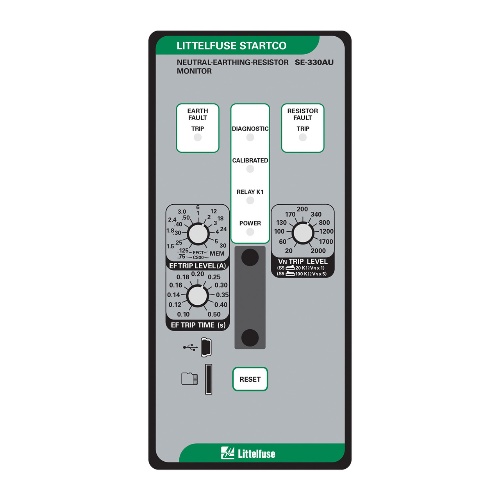

Littelfuse SE-330AU-23-00 Neutral-Earthing-Res Mon 48vdc Ethernet
Normally In Stock
Code: 565633
Littelfuse SE-330AU-23-00 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$9261.28
Sale Price
$7717.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-23-00 is a conformally coated relay with 2 Form A and 2 Form C contacts. It operates as fail-safe with IEEE Device Numbers 50G, 50N, 51G, 51N, 59N, and 86. It can be reset using a front-panel switch or remote N.O. contact. It offers standard harmonic filtering and is suitable for resistance grounded AC systems. It has a supply voltage of 28-52VAC and 36-72VDC. It supports auto/manual reset and has USB and Ethernet communication options. It has analog output current of 4-20mA and GF trip level of 0.125-30A. It supports RF trip levels of 20-2000V (systems up to 5kV) and 100-10000V (systems over 5kV). It has an RF trip time of 12s. The new revision is available now, while the old revision is no longer available.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
