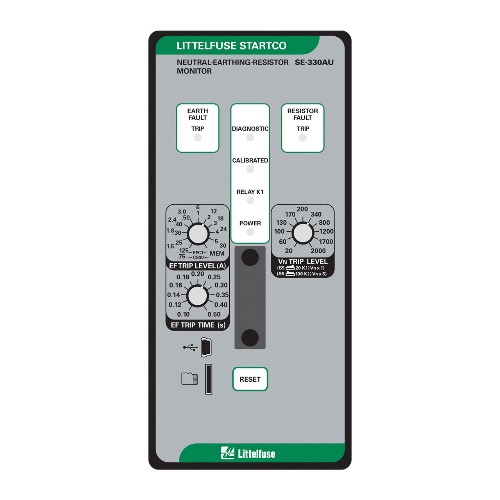

Littelfuse SE-330AU-21-01 Neutral-Earthing-Res Mon 48vdc D-Net NC
Normally In Stock
Code: 565632
Littelfuse SE-330AU-21-01 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$9261.28
Sale Price
$7717.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-21-01 is a conformally coated relay with multiple contact configurations (1 Form A, 1 Form B, 2 Form C) and fail-safe operation. It is suitable for resistance grounded AC systems. The device supports a wide supply voltage range and allows for front-panel switch or remote N.O. contact reset. In addition, it offers standard harmonic filtering, USB and DeviceNet communication capabilities, and analog output current of 4-20 mA. The GF trip level ranges from 0.125 to 30.0 A, while the RF trip level varies from 20 to 2000 V for systems up to 5 kV and 100 to 10,000 V for systems over 5 kV. The RF trip time is set at 12 seconds. The new revision of this product is now available, while the old revision is no longer available.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
