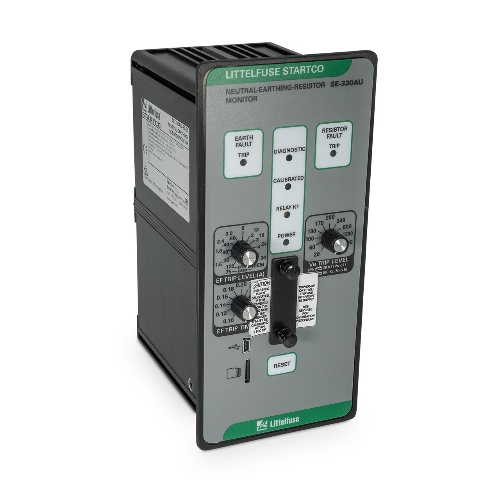

Littelfuse SE-330AU-20-00 Neutral-Earthing-Resistor Monitor 48vdc
Normally In Stock
Code: 565629
Littelfuse SE-330AU-20-00 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$6323.29
Sale Price
$5269.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-20-00 is a conformally coated device that operates at 50 and 60 frequency settings. It features 2 Form A and 2 Form C relay contacts with fail-safe operation. The device is equipped with front-panel and remote N.O. contact reset options. It offers standard harmonic filtering, a supply voltage range of 28-52 VAC and 36-72 VDC, as well as USB communications and 4-20 mA analog output current. The SE-330AU-20-00 is suitable for resistance grounded AC systems and has a GF trip level of 0.125-30.0 A and RF trip level of 20-2000V (systems up to 5 kV) and 100-10000V (systems over 5 kV). It has a GF trip time of 0.1-0.5 seconds and RF trip time of 12 seconds. This product is currently available in its new revision.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
