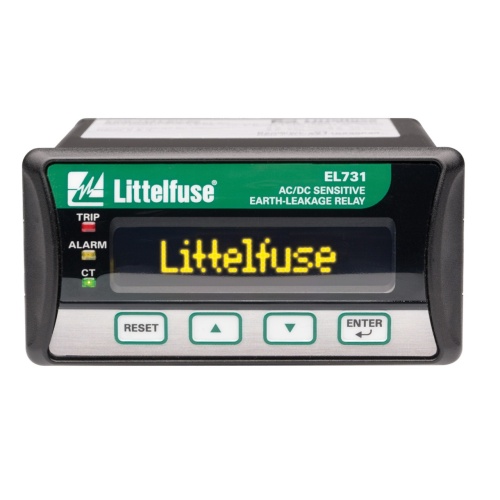

Littelfuse EL731-22-10 Ac/DC Elr,9-36vdc,Profibus,As 2081:2011
Normally In Stock
Code: 565424
Littelfuse EL731-22-10 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 24 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3963.64
Sale Price
$3303.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-22-10 is a conformally coated relay with 3 Form C (N.O./N.C.) contacts. It operates in fail-safe or non fail-safe modes with a frequency range of 0-6000. It has IEEE Device Numbers 38-49-50G-50N-51G-51N-79G and a reset option of front-panel switch or remote N.O. contact. It provides standard harmonic filtering and has GF trip times of 0.05-2.00s. It is suitable for solidly grounded AC/DC systems with a supply voltage of 24V DC. The auto manual reset options include latching trip or non-latching alarm. It supports Profibus communication and has GF trip levels of 0.03-5.00A. It can be mounted using DIN, panel, or surface methods.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt (DC)
Component
Ground-Fault Relay
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
