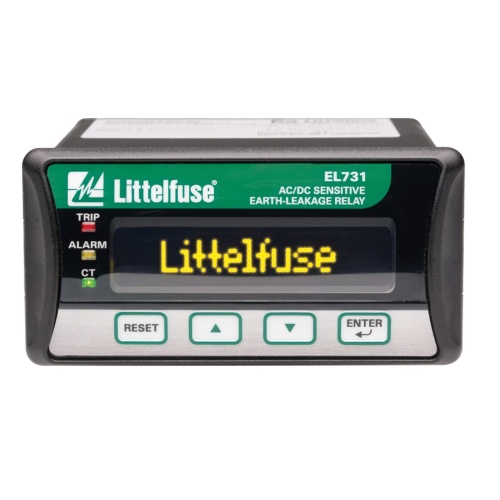

Littelfuse EL731-21-10 Ac/DC Elr,9-36vdc,Devicenet,As 2081:2011
Normally In Stock
Code: 565422
Littelfuse EL731-21-10 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 24 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3963.64
Sale Price
$3303.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-21-10 is a conformally coated relay with 3 Form C contacts. It operates as both fail-safe and non-fail-safe and is suitable for various system types including solidly grounded AC, solidly grounded DC, and resistance grounded AC. It has a reset type of front-panel switch or remote N.O. contact and offers harmonic filtering. The relay supports DeviceNet communications and has a supply voltage of 24V dc. It features a latching trip or non-latching alarm reset, with a GF trip time range of 0.05 to 2.00 seconds and a GF trip level range of 0.03 to 5.00A. The temperature sensor configuration is single PTC/RTD, and it can be mounted via DIN, panel, or surface methods.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt (DC)
Component
Ground-Fault Relay
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
