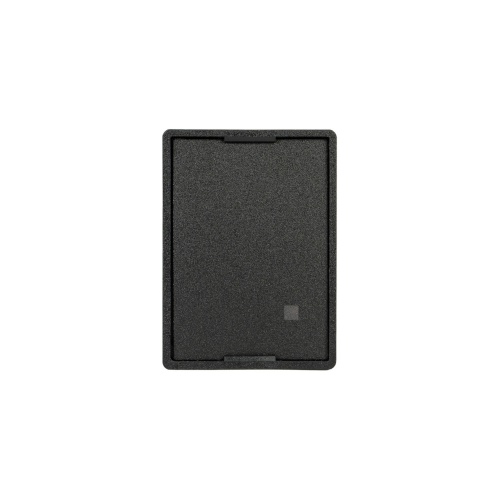

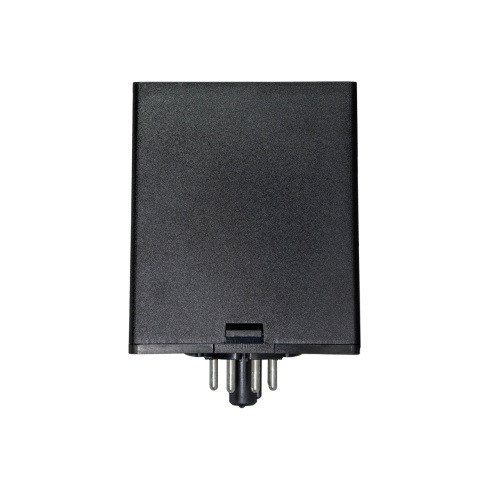

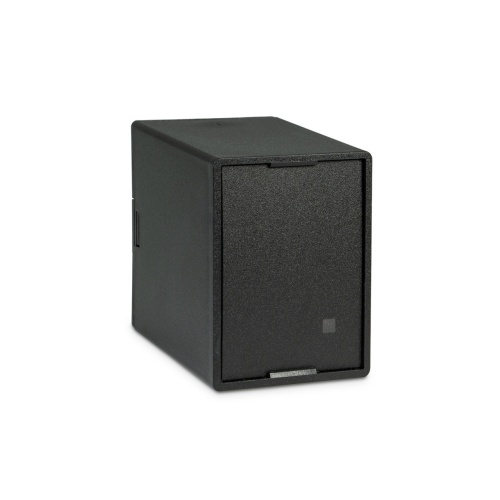

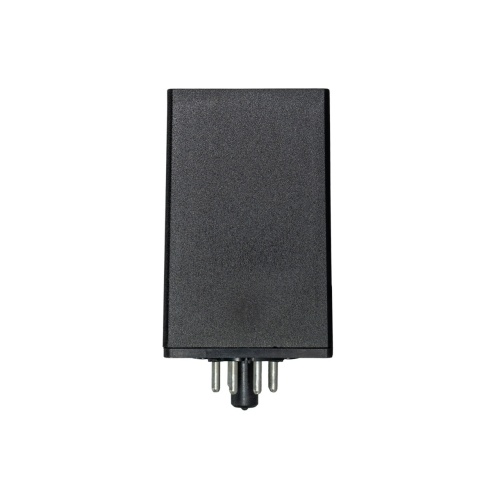

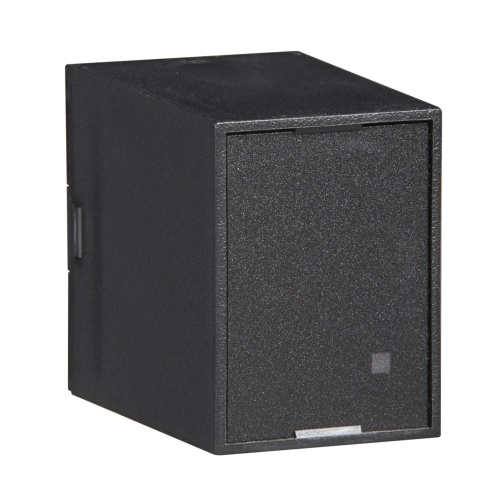

Littelfuse PLS480A Voltage Monitoring - 380-500 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565389
Littelfuse PLS480A - PLS Series – Voltage Monitor Series - 380-500 Volt - Plug-in socket - 120 and 240 VAC: 10 A resistive @ 240 VAC; 380 and 480 VAC: 8 A resistive @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$145.32
Sale Price
$121.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse PLS480A is a 8-pin plug-in relay with a termination type of octal. It has an output load rating of 120 and 240 Volts with a capacity of 10A resistive at 240 Volts. For 380 and 480 Volts, it can handle 8A resistive at 240 Volts. The input type is 3-phase delta or WYE with no connection to neutral and input phase sequence of A, B, C. It operates on an input AC line frequency of 50/60 Hz and has a maximum output voltage of 250V. The dropout response time is ≤50 ms and pull-in response time is ≤300 ms.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Plug-In Socket
Coil Voltage Rating
380-500 Volt
