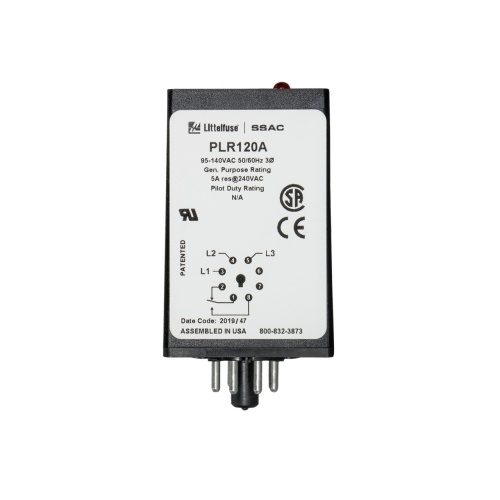

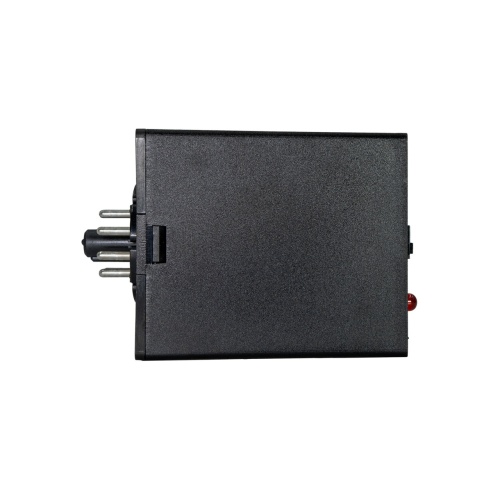

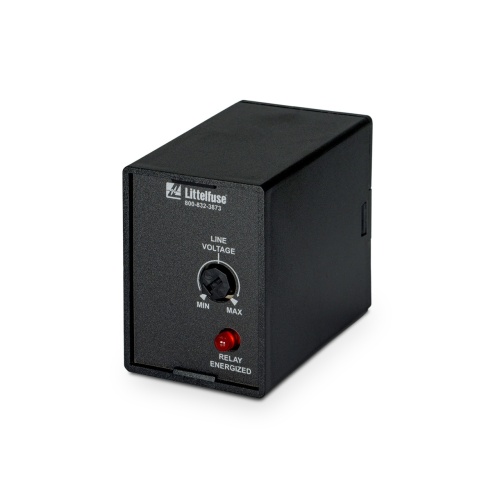

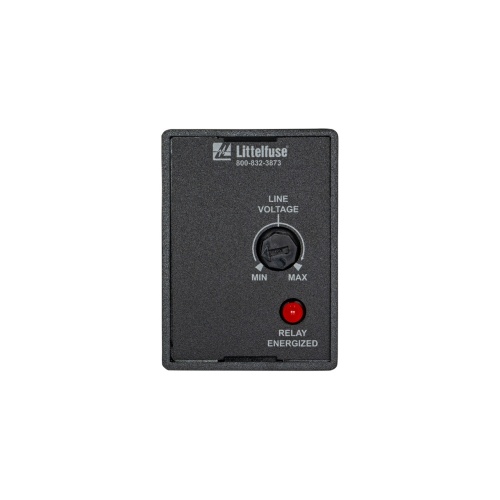

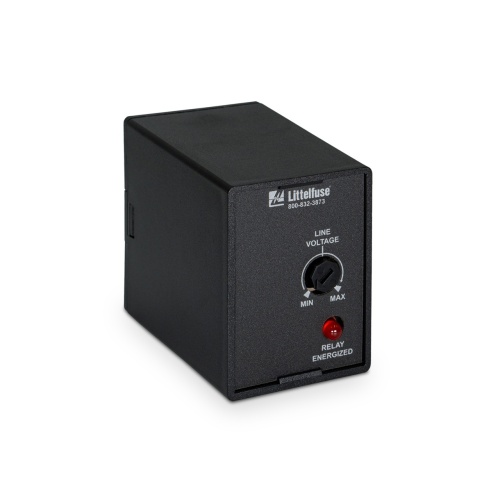

Littelfuse PLR120A Voltage Monitoring - 95-140 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565383
Littelfuse PLR120A - PLR Series – Voltage Monitor Series - 95-140 Volt - Plug-in socket rated 600V - 5 A resistive @ 240 VAC; 1/4 hp @ 120 VAC
Condition: New
Usually ships Same Day or Next Day$192.02
Sale Price
$160.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse PLR120A is a 8-pin plug-in relay with a 5A resistive load rating at 240V, or 1/4hp at 120V. It has an adjustable undervoltage trip voltage range of 85-130V, surge protection per IEEE C62.41-1991 Level B, and a maximum output voltage of 250V. It accepts a 3-phase delta or WYE input without connection to neutral, with a maximum input voltage of 143V. The drop-out response time is ≤100ms with a ≅2% hysteresis, and the pull-in response time is ≤400ms with a ≅2% hysteresis.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Plug-In Socket
Coil Voltage Rating
95-140 Volt
