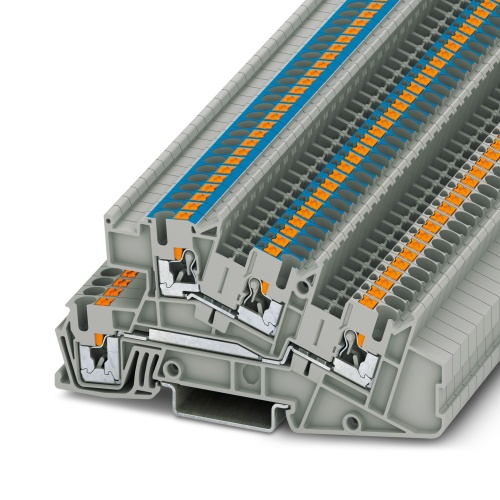

Phoenix Contact 3213954 Installation level terminal block PTI 2,5-L/N
Normally In Stock
Code: 42212
PTI 2,5-L/N Phoenix Contact 3213954 Installation Terminal Block - PTI 2,5-L/N Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 250 V, 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.34
Sale Price
$4.45
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213954 A terminal block with an installation level design features a nominal voltage of 400 V and a nominal current capacity of 24 A. It has push-in connections at multiple levels, including the first, second, and third levels, and is rated for cross-sections ranging from 0.14 mm2 to 4 mm2. The push-in connection type used for mounting is NS 35/7,5 or NS 35/15, with a color designation of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
