Code: 41509

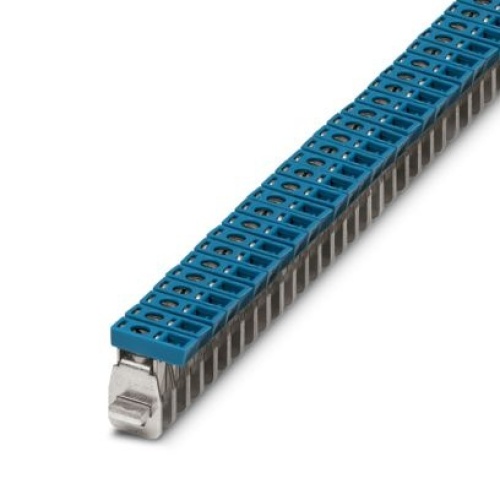

Phoenix Contact 0423014 Connection terminal block AKG 16 BU
Normally In Stock
Phoenix Contact 0423014 Connection Terminal Block - AKG 16 BU Screw Connection 1 Level 9.8 mm with . Not Grounded, Not Fused Blue. 300 Volt, 76 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$2.82
Sale Price
$2.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0423014 A connection terminal block features a nominal current rating of 76A and is accessible via screw connections, with its rated cross-sectional area ranging between 1.5mm² to 16mm². This component is typically mounted on a neutral busbar and distinguished by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
9.8 mm
Terminal Block Voltage Rating
300 Volt
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
6
Terminal Block Min Wire Size
16
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Connection Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
