Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41514

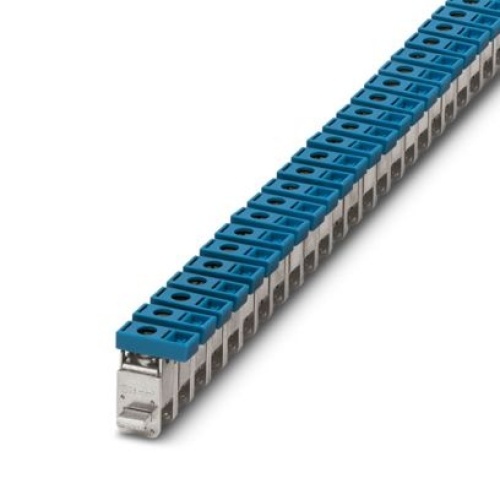

Phoenix Contact 0424013 Connection terminal block AKG 35 BU
Normally In Stock
Phoenix Contact 0424013 Connection Terminal Block - AKG 35 BU Screw Connection 1 Level 14.3 mm with . Not Grounded, Not Fused Blue. 300 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$4.42
Sale Price
$3.68
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0424013 The connection terminal block has a nominal voltage of 300V and a nominal current capacity of 125A, with a screw connection method, and is rated for cross sections ranging from 2.5mm2 to 35mm2. It features a neutral busbar mounting and a distinctive blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
14.3 mm
Terminal Block Voltage Rating
300 Volt
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
14
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Connection Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
