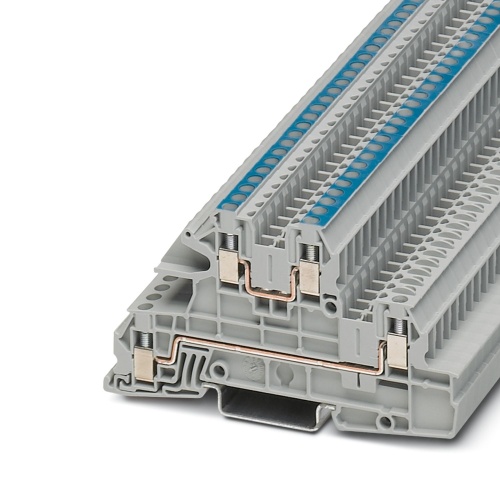

Phoenix Contact 3076035 Installation level terminal block UTI 2,5-L/N
Normally In Stock
Code: 41005
UTI 2,5-L/N Phoenix Contact 3076035 Installation Terminal Block - UTI 2,5-L/N Screw Connection 3 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$4.54
Sale Price
$3.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076035 The terminal block has a rating of 400V and 24A, featuring screw connections at three levels with different rated cross-sections ranging from 0.2-4mm², while it is mounted using type NS 35/7.5 or NS 35/15 and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Downloads
Phoenix 3076035 Application Note International.pdfPhoenix 3076035 CAD data International.dxfPhoenix 3076035 CAD data International.pdfPhoenix 3076035 CAD data International.stpPhoenix 3076035 Manufacturers declaration English.pdfPhoenix 3076035 Manufacturers declaration International.pdfPhoenix 3076035 Safety note English.pdfPhoenix 3076035 Tender Text English.zip
