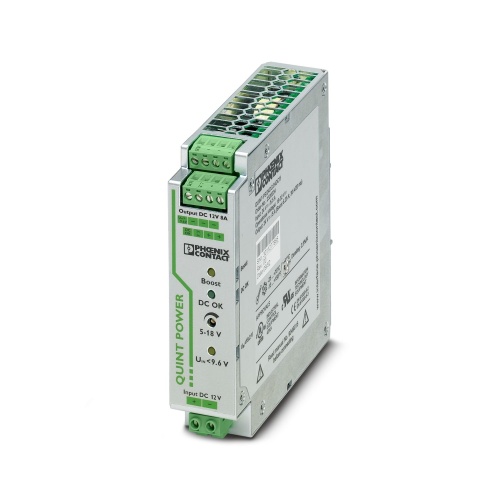

Phoenix Contact 2905007 DC/DC converter QUINT-PS/12DC/12DC/8
Normally In Stock
Code: 36905
QUINT-PS/12DC/12DC/8 Phoenix Contact QUINT-PS/12DC/12DC/8. Power Supply. Quint DC-DC converter,input: 12 V DC,output: 12 V DC/8 A. converts the DC voltage from 9 V DC ... 18 V DC to an adjustable,controlled and galvanically separated 8 V output voltage.
Condition: New
Usually ships Same Day or Next Day$547.01
Sale Price
$455.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905007 A primary-switched QUINT DC/DC converter is designed for DIN rail mounting and features selective fuse breaking (SFB) technology. It has a single-phase input of 12 volts DC and produces a single-phase output of 12 volts DC with a maximum current rating of 8 amps.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
8 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
9 VDC - 18 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2905007 CAD data International.dxfPhoenix 2905007 CAD data International.pdfPhoenix 2905007 CAD data International.stpPhoenix 2905007 Data Sheet English.pdfPhoenix 2905007 Manufacturers declaration International-2.pdfPhoenix 2905007 Manufacturers declaration International.pdfPhoenix 2905007 Package Slip International.pdfPhoenix 2905007 Tender Text English.zipPhoenix 2905007 Various English.pdfPhoenix 2905007 Various English.wmv
