Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 2866721 Power supply unit QUINT-PS/1AC/12DC/20
Normally In Stock
Code: 605
QUINT-PS/1AC/12DC/20 Phoenix Contact QUINT-PS/1AC/12DC/20. 12 VDC output 20 Amp output Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F.
Condition: New
Usually ships within 7-14 days. Call for ship time.$1077.49
Sale Price
$897.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

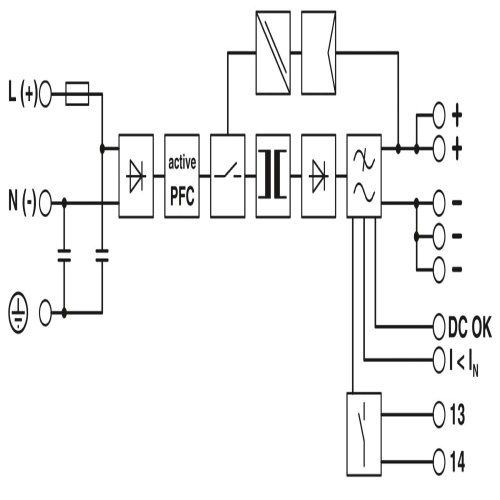

Phoenix Contact 2866721 The QUINT POWER is a primary-switched power supply unit with a screw connection and utilizes SFB Technology for selective fuse breaking. It has a single-phase input and produces a stable output of 12V DC at 20A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
16-20 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Quick tripping of standard circuit breakers
Preventive function monitoring
Reliable starting of difficult loads
Downloads
Phoenix 2866721 CAD data International.dxfPhoenix 2866721 CAD data International.pdfPhoenix 2866721 CAD data International.stpPhoenix 2866721 CAD Drawing.dxfPhoenix 2866721 Data Sheet English.pdfPhoenix 2866721 Manufacturers declaration English.pdfPhoenix 2866721 Manufacturers declaration International-2.pdfPhoenix 2866721 Manufacturers declaration International-3.pdfPhoenix 2866721 Manufacturers declaration International.pdfPhoenix 2866721 Package Slip International.pdfPhoenix 2866721 Spec Sheet.pdfPhoenix 2866721 Tender Text English.zipPhoenix 2866721 User Manual.pdfPhoenix 2866721 Various English.pdfPhoenix 2866721 Various English.wmv
