Phoenix Contact 2866718 Power supply QUINT-PS/1AC/12DC/15
Normally In Stock
Code: 604
Phoenix Contact QUINT-PS/1AC/12DC/15. 12 VDC output 15 Amp output Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F.
Condition: New
Usually ships within 7-14 days. Call for ship time.$786.16
Sale Price
$655.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

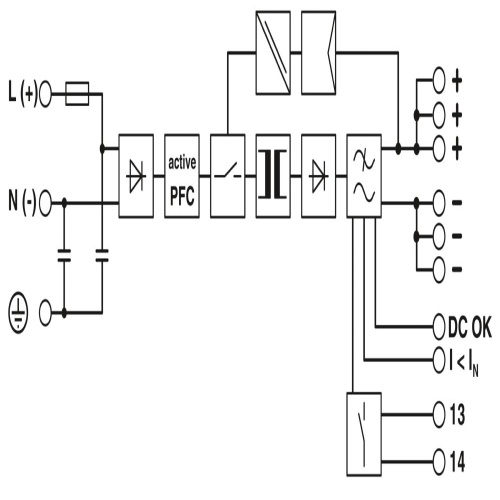

Phoenix Contact 2866718 The QUINT POWER is a primary-switched power supply unit that offers a pluggable screw connection and can be mounted on a DIN rail. It incorporates the SFB Technology for selective fuse breaking, allowing for enhanced safety features. The unit has an input of 1-phase power and outputs 12V DC at a maximum current capacity of 15A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Watts
180 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
15 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Power Supply Amperage Output Range
11-15 Amp
Features
Quick tripping of standard circuit breakers
Preventive function monitoring
Reliable starting of difficult loads
