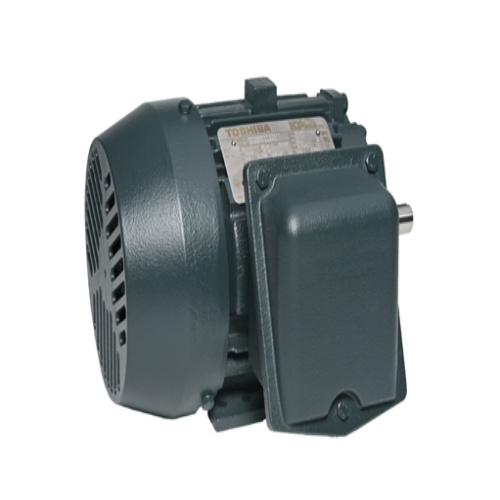

Toshiba B1253FLG3OSHD01 Standard IEEE 840 Motor 125 HP 575 Volt 3 Phase
Normally In Stock
Code: 31112
Toshiba B1253FLG3OSHD01 Standard IEEE 840 Motor 125 HP 575 Volt 3 Phase Totally Enclosed Fan Cooled 3600 RPM 112 Amp Continuous Duty Cast Iron Frame with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$21035.44
Sale Price
$17529.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Toshiba EQP Global 840 Motor with 575 Volt, 3 Phase, 125 HP. Excellent quality with oversized 300 series bearings and low temperature rise to extend life of motor. Specifically addressed the needs of chemical industries, and mills using many of the IEEE841 features.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
125 HP
Motor Frame Model
444TS
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
3600 RPM
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
112 Amp
Motor Frame Construction
Cast Iron
