Code: 26398

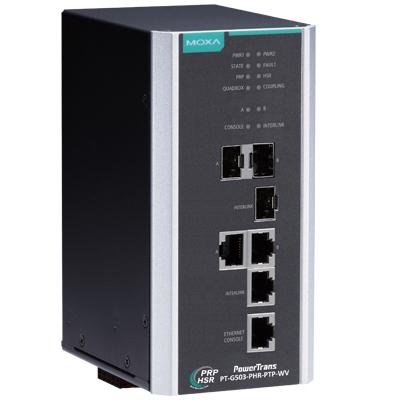

Moxa PT-G503-PHR-PTP-WV Layer 2 Managed Switch
Normally In Stock
Moxa PT-G503-PHR-PTP-WV Layer 2 Managed Switch
Condition: New
Usually ships Same Day or Next DaySale Price
$3045.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply (24/48 VDC), -40 to 85°C operating temperature
Specifications
Switch Management
Managed
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
IEC 61850-3, IEEE 1613 (power substations) compliant
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
PRP/HSR Coupling and QuadBox functions supported
Ethernet console reserved for local access
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
Hardware-based IEEE 1588v2 PTP supported
Design ready for NERC CIP compliant system development
Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
-40 to 85°C operating temperature range
Downloads

Code: 26398
Moxa PT-G503-PHR-PTP-WV Layer 2 Managed Switch
Sale Price
$3045.44
