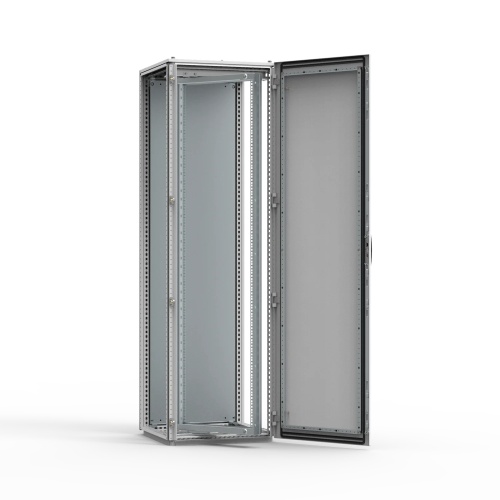

nVent Hoffman ESFC456 A swing frame for 19-inch equipment that provides additional mounting space for such equipment, as well as rear access to the fitted components and equipment once opened.Feature: full height swing frame, for floor standing enclosuresAdvantage: additional surface for the installation of 19-inch equipment, within a hinged frame; the frame can be mounted within enclosures from 600 mm in widthBenefit: the frame allows customers to install equipment and components into floor standing enclosures efficiently by maximising the installation space available; access can be gained to the front and rear of the equipment installed in the frame, as well as to the components installed behind on the mounting plate, when the frame is openedComment: the transversal support bars, ESFB, must be mounted in combination with the full height swing frame; if there is not enough useful depth for the equipment installed on the 19-inch swing frame, then the width of the enclosure must be increased to allow the swing frame to be opened; if the empty space surrounding the swing frame needs to be covered, then the centred swing frame, ESFM, or the side mounted swing frame, ESFS, can be mounteMaximum load: 1800N (405), supplied with a self positioning deviceLock: two 3 mm double-bit locksMounting requirements: ESFC for 600mm (24), 800mm (31), 1000mm (39), 1200mm (47) wide steel, combinable enclosures; add ESFB for mounting in a steel, combinable enclosure
