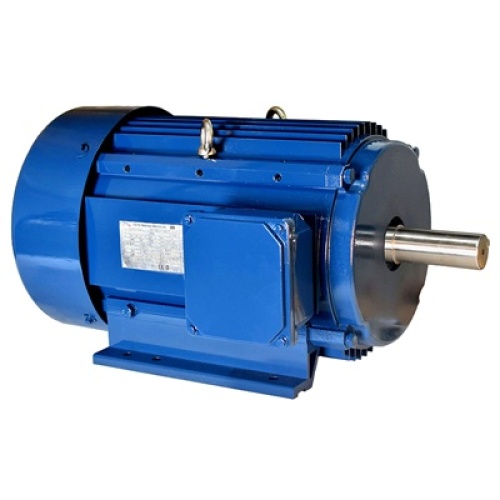

NAE APE182T-3-2 Electric Motor General Purpose Aluminum, 208-230 Volt, 460 Volt, 3 Phase, 3 HP, 7.9-7.4 Amp, 3.7 Amp
Normally In Stock
Code: 216797
NAE APE182T-3-2 Electric Motor 3 HP, 3600 RPM, 182T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Aluminum, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$471.30
Sale Price
$392.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NAE APE182T-3-2 General Purpose Aluminum Electric Motor used for Catfish pond aeration; Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/High starting torque3Dual-drilled feet for mounting flexibility; Removable bases; F1/F2 Reversible; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frame Model
182T
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Amperage (Full Load)
3.7 Amp
Motor Frame Construction
Aluminum
Motor Amperage (Full Load)
7.9 - 7.4 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
Suitable for 575V @ 1.0
NEMA Design B Performance/High starting torque3Dual-drilled feet for mounting flexibility
Removable bases
F1/F2 Reversible
Lifting provision
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware
IP55 protection
Condensation drain with plugs
Sealed bearings
3-year warranty (extended warranty available)
