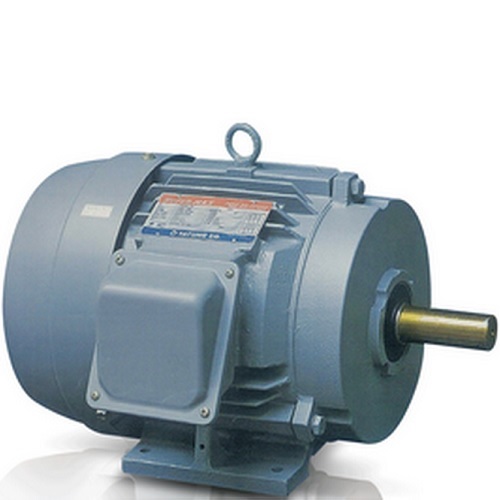

Tatung WH0102FFAC Electric Motor 10 HP 230V 3 Phase
Normally In Stock
Code: 20222
Tatung WH0102FFAC Super-Max 10 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 3600 RPM, Inverter Duty, Continuous Duty, 23 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 215T.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1119.00
Sale Price
$932.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tatung WH0102FFAC Super-Max 10 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 3600 RPM, Inverter Duty, Continuous Duty, 23 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 215T.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
10 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Manufacturer
Tatung Motors
Motor Amperage (Full Load)
23 Amp
Motor Frame Construction
Cast Iron
Features
NEMA premium efficiency, frames: 143T - N5808.
Cast iron frame, 3 phase, 60Hz, 230/460 volt, 1.15 S.F., inverter duty.
Class F insulation, NEMA design B, continuous duty, 40 degree C ambient.
