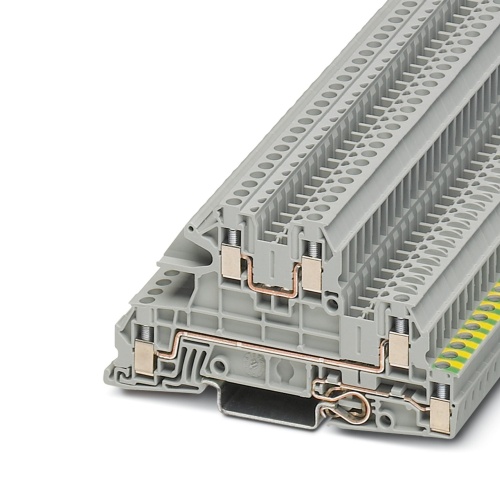

Phoenix Contact 3076029 Installation protective conductor terminal block UTI 2,5-PE/L/L
Normally In Stock
Code: 18034
UTI 2,5-PE/L/L Phoenix Contact 3076029 Phoenix Contact UTI 2.5-PE/L/L. Triple Level Insulated Terminal Block with Ground Block 5.2mm Gray through screw connection, 400V, 30A, 12-24AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.65
Sale Price
$5.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076029 The protective conductor terminal block is designed for installation with a nominal voltage of 400 V and a maximum current capacity of 24 A. The connection method involves screwing into place at three different levels (1st, 2nd, and 3rd) to secure the rated cross-section, which ranges from 0.2 mm² to 4 mm², depending on the mounting type, specifically NS 35/7.5 or NS 35/15, and characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Installation Ground Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Downloads
Phoenix 3076029 Application Note International.pdfPhoenix 3076029 Assembly Instructions.pdfPhoenix 3076029 CAD data International.dxfPhoenix 3076029 CAD data International.pdfPhoenix 3076029 CAD data International.stpPhoenix 3076029 CAD Drawing.zipPhoenix 3076029 Manufacturers declaration English.pdfPhoenix 3076029 Manufacturers declaration International.pdfPhoenix 3076029 Safety note English.pdfPhoenix 3076029 Spec Sheet.pdfPhoenix 3076029 Tender Text English.zip
