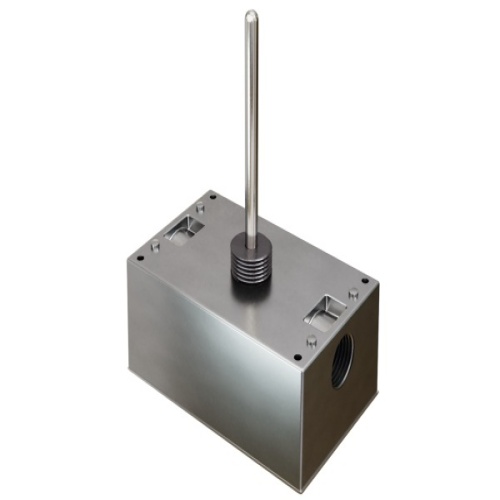

ACI 148108 A/1K-3W-D-12"-BB Duct RTD
Normally In Stock
Code: 179364
ACI 148108 1,000 Ohm (Three Wires) RTD, Duct, 12", NEMA 3R Enclosure
Condition: New
Usually ships Same Day or Next Day$49.68
Sale Price
$41.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Platinum Duct Series features a stainless steel probe with Etched Teflon colored lead wires to differentiate the different sensor types. The three-wire “-3W” option should be ordered when using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3rd wire is to compensate for external lead wire resistance that will affect the accuracy of your sensor output. ACI recommends the use of an 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD. The sensors are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture on the sensors and to increase response times using our high quality, thermally conductive epoxy. The duct style sensor is a single point sensor designed to be used in smaller duct applications and includes an insulation pad for sealing the duct and dampening vibration. The sensor length should be determined by the width or diameter of your duct, such that the tip of the probe is in the approximate center of the duct. Standard enclosure options include the “-GD” Galvanized or “-PB” plastic enclosure with hinged cover. On larger ducts, our Rigid or Bendable Copper Averaging sensor may offer better coverage based upon the size of your duct system and sensor location. Optional NEMA/IP rated weather proof enclosures and NIST Certiffcates are available as referenced in the ordering grid. Applications: Roof Top Units, Air Handlers, Monitoring Supply/Discharge/Return/Mixed Air Temperatures
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Composition
Platinum
Features
The ACI Platinum Duct Series features a stainless steel probe with Etched Teon colored lead wires to dierentiate the dierent sensor types
The three-wire “-3W” option should be ordered when using with a 3-Wire temperature transmitter or sensor conguration on your building management system or PLC (Programmable Logic Controller)
The purpose of the 3rd wire is to compensate for external lead wire resistance that will aect the accuracy of your sensor output
ACI recommends the use of an 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD
The sensors are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture on the sensors and to increase response times using our high quality, thermally conductive epoxy
The duct style sensor is a single point sensor designed to be used in smaller duct applications and includes an insulation pad for sealing the duct and dampening vibration
The sensor length should be determined by the width or diameter of your duct, such that the tip of the probe is in the approximate center of the duct
Standard enclosure options include the “-GD” Galvanized or “-PB” plastic enclosure with hinged cover
On larger ducts, our Rigid or Bendable Copper Averaging sensor may oer better coverage based upon the size of your duct system and sensor location
Optional NEMA/IP rated weather proof enclosures and NIST Certicates are available as referenced in the ordering grid.
