The ACI Platinum Flexible Averaging Series features an 18 AWG Plenum rated cable with EtchedTeon colored lead wires to dierentiate the dierent sensor types

ACI recommends using 18AWG lead wires to reduce external lead wire resistance when using a Platinum RTD

All sensorsare manufactured with 4 or 9 sensing points determined by the length of the sensor.Averaging sensors provide a better average temperature of the air inside larger ducts whencompared to that of a single point sensor

The exible averaging sensors are limited toapplications where operating temperatures are limited and where high humidity, chemicalresistance and UV Light Air Treatment Systems aren’t required

Each of the sensing elements isprotected by a dual wall adhesive lined heat shrink tubing to provide a level of moistureprotection to the sensing elements

The sensor length should be determined by the dimensional size of your duct

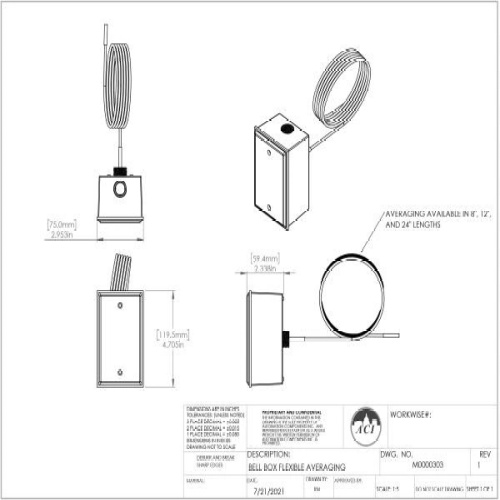

Standard enclosure optionsinclude a “-GD” Galvanized or “-PB” plastic duct enclosure with hinged cover

Each unit includes nylon wire ties and mounts for mounting

Optionalcopper capillary or universal plastic mounting clips, NEMA/IP rated enclosures and NIST Certicates are available as referenced in the ordering grid.
