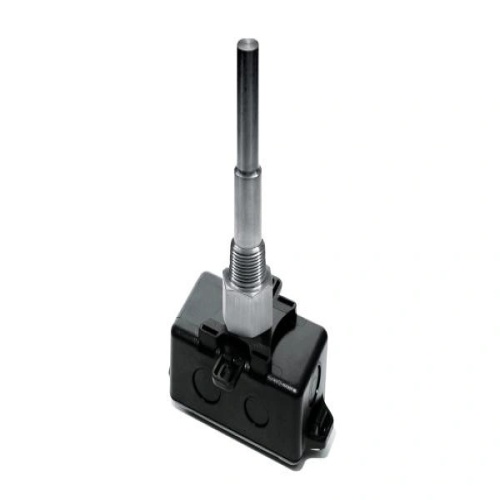

ACI 144189 A/100-2W-IM-2.5"-PB 2 Wire,100 Ohm Immersion RTD
Normally In Stock
Code: 178176
ACI 144189 100 Ohm (Two Wires) RTD, Immersion, Machined Well, 2.5", Plastic Enclosure
Condition: New
Usually ships Same Day or Next Day$55.62
Sale Price
$46.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Platinum Immersion Series features a ¼” diameter stainless steel probe with two, 14” 22 AWG Etched Teflon colored lead wires depending on the probe length ordered to differentiate the sensor types. The three-wire “-3W” option should be ordered when using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Immersion
(Instrument-Sensor) Composition
Platinum
(Instrument-Sensor) Type
2 Wire-100 Ohm
Features
The ACI Platinum Immersion Series features a stainlesssteel probe with Etched Teflon colored lead wires todifferentiate the different sensor types
The three-wire“-3W” option should be ordered when using with a 3-Wiretemperature transmitter or sensor configuration on yourbuilding management system or PLC (Programmable LogicController)
The purpose of the 3rd wire is to compensate forexternal lead wire resistance that affects the sensor output.ACI recommends the use of 1.02 mm (18 AWG) lead wiresto reduce the external lead wire resistance when using aPlatinum RTD
The sensors in this series are manufacturedusing ACI’s proven double encapsulation process toeliminate the effects of moisture upon the sensors and toincrease thermal response times using our high quality,thermally conductive epoxy

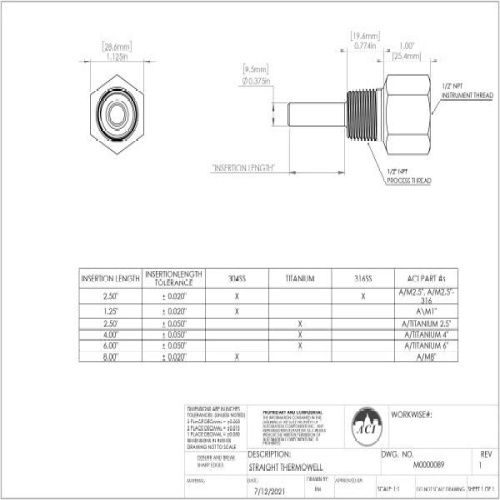

The immersion sensors “-I”include a welded thermowell but can be ordered without thethermowell “-INW” version
The “-INW” includes a standard½ in NPS process thread to be used with an optionalmachined thermowell or an existing thermowell application.Optional NEMA/IP rated weather proof enclosures and NISTCertificates are available as referenced on this product datasheet.
