Code: 178120
ACI 143938 A/1K-2W-PM-10'CL2P 2 Wire,1K Ohm RTD
Normally In Stock

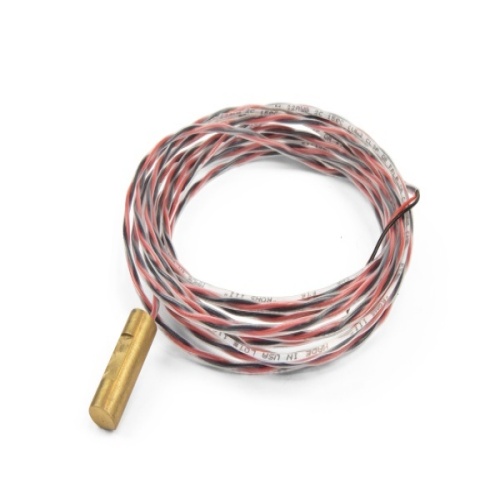

ACI 143938 1,000 Ohm (Two Wires) RTD, Pipe Mount, Brass, 10' Plenum Cable
Condition: New
Usually ships Same Day or Next Day$71.28
Sale Price
$59.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Pipe Mount probe is specially designed to fit pipe contours of 1” diameter or less. The unique shape of the probe allows for a strap to securely install the sensor to against a pipe. In addition, the convex contour aids in the temperature transfer, allowing for a more accurate signal.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Composition
Platinum
(Instrument-Sensor) Type
2 Wire-1K Ohm
Features

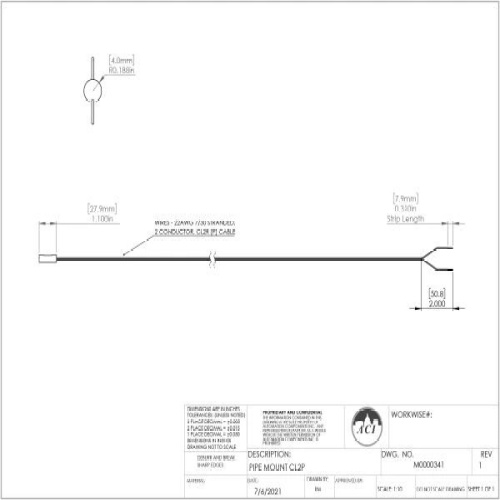

The ACI Platinum Pipe Mount Series features a 1.1” long Brass sensing element with a slight curvature on the bottom that is designed to increase the surface area and improve thermal conductivity between the pipe and sensor
Each sensor has two, 24 inch, 22 AWG Etched Te on colored lead wires to di erentiate the di erent sensor types
The three-wire “-3W” option should be ordered if using with a 3-Wire temperature transmitter or sensor con guration on your building management system or PLC (Programmable Logic Controller)
The purpose of the 3rd wire is to compensate for any external lead wire resistance that will a ect the sensor output
ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD sensor
The sensors are manufactured using ACI’s proven double encapsulation process to eliminate the e ects of moisture upon the sensors and to improve the thermal response times with our high quality, thermally conductive epoxy
The Pipe Mount sensor should be used on pipe or coil sizes from 1/2” to 1” in diameter
A 7.5” nylon wire tie is supplied for fastening the sensor to the top of the pipe
For best accuracy and increased conduction between the pipe and the sensor, we recommend that you clean the pipe before applying thermal grease between the mating surfaces and then to insulate the sensor from the external e ects of the ambient air
An optional plenum rated cable and NIST Certi cate can be ordered as referenced in the ordering grid.
